Microsoft Azure Networking Solutions(AZ-700) exam is an advanced-level certification exam from Microsoft Azure. By enrolling for this Microsoft Azure Certification AZ-700 you get the credibility and can validate your Azure Networking Solutions skills such as designing and implementing hybrid networks, routing, monitoring networks. Passing this AZ-700 exam will help you earn Microsoft Certified: Azure Network Engineer Associate Certification.

You’ve come to the right place if you need assistance with Microsoft AZ-700 exam preparation and a guarantee of passing your exam.This AZ-700 practice exam is designed to help you prepare for the Microsoft Azure Networking Solutions exam. These example questions will give you a sense of the kind of questions you’ll encounter on the AZ-700 certification exam. Hurry up and take the quiz to test yourself!

Page 1 of 3

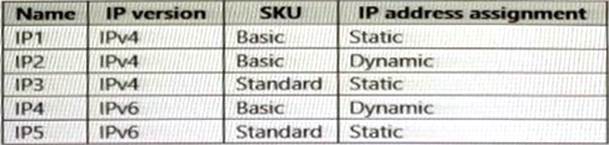

1. You have an Azure subscription that contains the public IP addresses shown in the following table.

You plan to deploy a NAT gateway named NAT1.

Which public IP addresses can be used as the public IP address for NAT1?

IP3 and IP5 only

IP5 only

IP1, IP3, and IP5 only

IP3 only

IP2 and IP4 only

2. You have an Azure Front Door instance that has a single frontend named Frontend1 and an Azure Web Application Firewall (WAF) policy named Policy1. Policy1 redirects requests that have a header containing "string1" to https://www.contoso.com/redirect1. Policy1 is associated to Frontend1.

You need to configure additional redirection settings. Requests to Frontend1 that have a header containing "string2" must be redirected to https://www.contoso.com/redirect2.

Which three actions should you perform? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

Create a custom rule.

Configure a managed rule.

Create a frontend host.

Create a policy.

Create an association.

Add a custom rule to Policy1.

3. You are planning an Azure Point-to-Site (P2S) VPN that will use OpenVPN.

Users will authenticate by using an on premises Active Directory domain.

Which additional service should you deploy to support the VPN authentication?

a certification authority (CA)

a RADIUS server

an Azure key vault

Azure Active Directory (Azure AD) Application Proxy

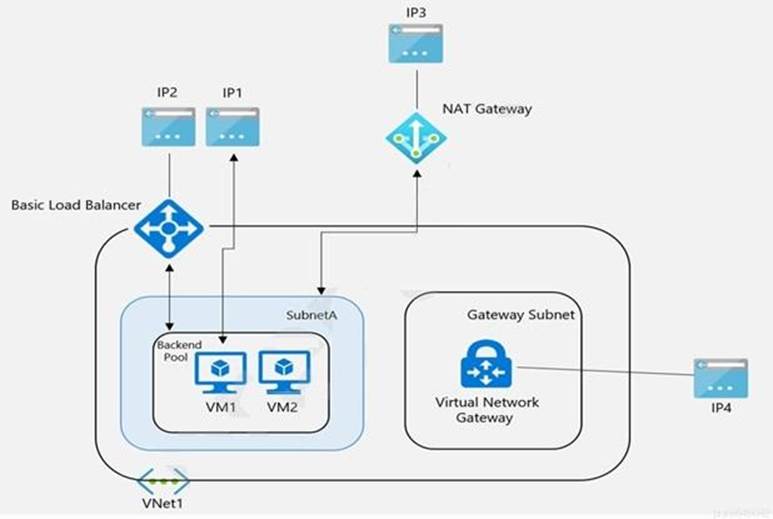

4. You have the Azure environment shown in the exhibit.

VM1 is a virtual machine that has an instance-level public IP address (ILPIP).

Basic Load Balancer uses a public IP address. VM1 and VM2 are in the backend pool.

NAT Gateway uses a public IP address named IP3 that is associated to Subnet A.

VNet1 has a virtual network gateway that has a public IP address named IP4.

When initiating outbound traffic to the internet from VM1, which public address is used?

IP1

IP2

IP3

IP4

5. Your company has offices in New York and Amsterdam. The company has an Azure subscription. Both offices connect to Azure by using a Site-to-Site VPN connection.

The office in Amsterdam uses resources in the North Europe Azure region. The office in New York uses resources in the East US Azure region.

You need to implement ExpressRoute circuits to connect each office to the nearest Azure region. Once the ExpressRoute circuits are connected, the on-premises computers in the Amsterdam office must be able to connect to the on-premises servers in the New York office by using the ExpressRoute circuits.

Which ExpressRoute option should you use?

ExpressRoute Local

ExpressRoute FastPath

ExpressRoute Direct

ExpressRoute Global Reach

6. You need to configure the default route in Vnet2 and Vnet3. The solution must meet the virtual networking requirements.

What should you use to configure the default route?

a user-defined route assigned to GatewaySubnet in Vnet2 and Vnet3

a user-defined route assigned to GatewaySubnet in Vnet1

BGP route exchange

route filters

7. DRAG DROP

You have an Azure subscription that contains the resources shown in the following table.

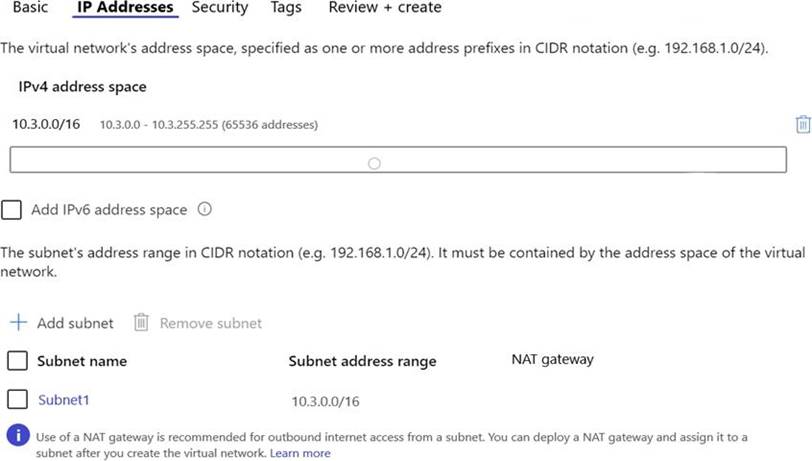

The IP Addresses settings for Vnet1 are configured as shown in the exhibit.

You need to ensure that you can integrate WebApp1 and Vnet1.

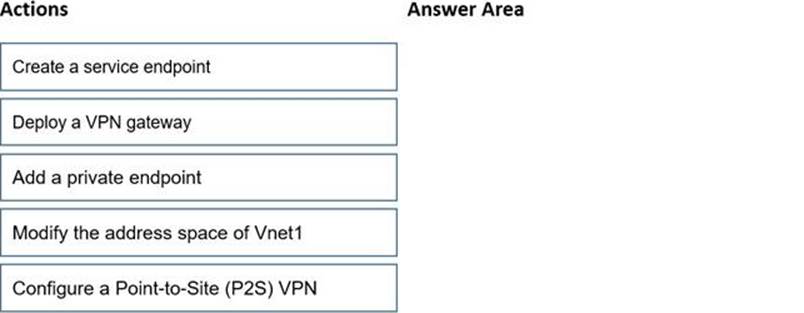

Which three actions should you perform in sequence before you can integrate WebApp1 and Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

8. You have an Azure subscription that is linked to an Azure Active Directory (Azure AD) tenant named contoso.onmicrosoft.com.

The subscription contains the following resources:

* An Azure App Service app named App1

* An Azure DNS zone named contoso.com

* An Azure private DNS zone named private.contoso.com

* A virtual network named Vnet1

You create a private endpoint for App1. The record for the endpoint is registered automatically in Azure DNS.

You need to provide a developer with the name that is registered in Azure DNS for the private endpoint.

What should you provide?

app1.privatelink.azurewebsites.net

app1.contoso.com

app1.contoso.onmicrosoft.com

app1.private.contoso.com

9. You have an Azure virtual network named Vnet1.

You need to ensure that the virtual machines in Vnet1 can access only the Azure SQL resources in the East US Azure region. The virtual machines must be prevented from accessing any Azure Storage resources.

Which two outbound network security group (NSG) rules should you create? Each correct answer presents part of the solution. NOTE: Each correct selection is worth one point.

an allow rule that has the IP address range of Vnet1 as the source and destination of Sql.EastUS

a deny rule that has a source of VirtualNetwork and a destination of Sql

a deny rule that has a source of VirtualNetwork and a destination of 168.63.129.0/24

a deny rule that has the IP address range of Vnet1 as the source and destination of Storage

10. HOTSPOT

You need to meet the network security requirements for the NSG flow logs.

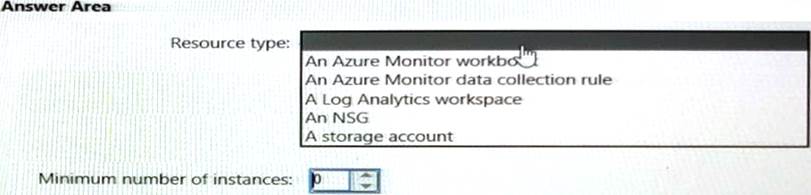

Which type of resource do you need, and how many instances should you create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

Page 2 of 3

11. You are configuring two network virtual appliances (NVAs) in an Azure virtual network. The NVAs will be used to inspect all the traffic within the virtual network.

You need to provide high availability for the NVAs. The solution must minimize administrative effort.

What should you include in the solution?

Azure Standard Load Balancer

Azure Traffic Manager

Azure Application Gateway

Azure Front Door

12. You plan to configure BGP for a Site-to-Site VPN connection between a datacenter and Azure.

Which two Azure resources should you configure? Each correct answer presents a part of the solution. (Choose two.) NOTE: Each correct selection is worth one point.

a virtual network gateway

Azure Application Gateway

Azure Firewall

a local network gateway

Azure Front Door

13. You have five virtual machines that run Windows Server. Each virtual machine hosts a different web app.

You plan to use an Azure application gateway to provide access to each web app by using a hostname of www.contoso.corn and a different URL path for each web app, for example: https://www.contoso.com/app1.

You need to control the flow of traffic based on the URL path.

What should you configure?

rules

rewrites

HTTP settings

listeners

14. HOTSPOT

You have an Azure Front Door instance that provides access to a web app. The web app uses a hostname of www.contoso.com.

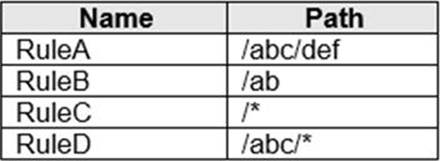

You have the routing rules shown in the following table.

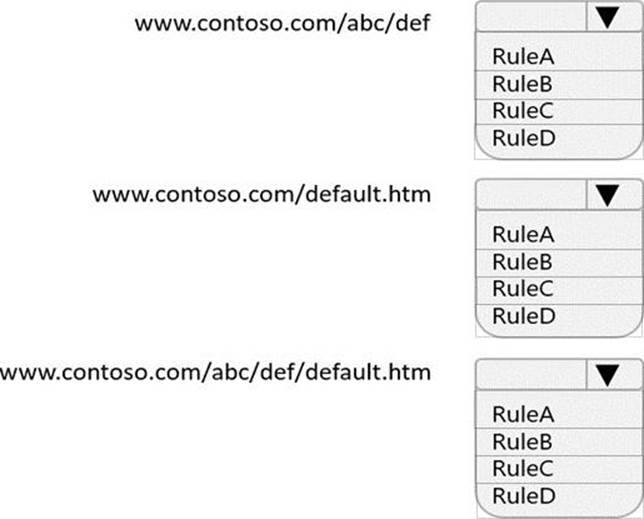

Which rule will apply to each incoming request? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point

15. You need to configure GW1 to meet the network security requirements for the P2S VPN users.

Which Tunnel type should you select in the Point-to-site configuration settings of GW1?

IKEv2

IKEv2 and SSTP (SSL)

OpenVPN (SSL)

SSTP (SSL)

16. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.

You configure the application gateway to direct traffic to the URL of the application gateway.

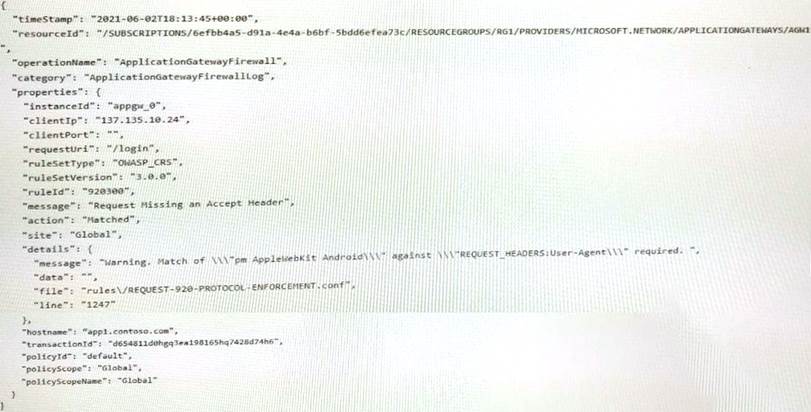

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.

You need to ensure that the URL is accessible through the application gateway.

Solution: You disable the WAF rule that has a ruleld of 920300.

Does this meet the goal?

Yes

17. You have an Azure virtual network named Vnet1 that has one subnet. Vnet1 is in the West Europe Azure region.

You deploy an Azure App Service app named App1 to the West Europe region.

You need to provide App1 with access to the resources in Vnet1. The solution must minimize costs.

What should you do first?

Create a private link.

Create a new subnet.

Create a NAT gateway.

Create a gateway subnet and deploy a virtual network gateway.

18. You have an Azure Front Door instance named FD1 that is protected by using Azure Web Application Firewall (WAF).

FD1 uses a frontend host named app1.contoso.com to provide access to Azure web apps hosted in the East US Azure region and the West US Azure region.

You need to configure FD1 to block requests to app1.contoso.com from all countries other than the United States.

What should you include in the WAF policy?

a frontend host association

a managed rule set

a custom rule that uses a rate limit rule

a custom rule that uses a match rule

19. You have an Azure subscription that contains the public IPv4 addresses shown in the following table.

You plan to create a load balancer named LB1 that will have the following settings:

* Name: LB1

* Location: West US

* Type: Public

* SKU: Standard

Which public IPv4 addresses can be used by LB1?

IP1 and IP3 only

IP3 only

IP3 and IP5 only

IP2only

IP1, IP2. IP3. IP4. and IP5

IP1, IP3, IP4, and 1P5 only

20. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have two Azure virtual networks named Vnet1 and Vnet2.

You have a Windows 10 device named Client1 that connects to Vnet1 by using a Point-to-Site (P2S) IKEv2 VPN.

You implement virtual network peering between Vnet1 and Vnet2. Vnet1 allows gateway transit. Vnet2 can use the remote gateway.

You discover that Client1 cannot communicate with Vnet2.

You need to ensure that Client1 can communicate with Vnet2.

Solution: You download and reinstall the VPN client configuration.

Does this meet the goal?

Yes

Page 3 of 3

21. CORRECT TEXT

You are implementing the Virtual network requirements for Vnet6.

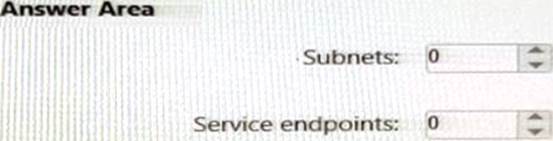

What is the minimum number of subnets and service endpoints you should create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

22. HOTSPOT

You have an Azure virtual network named Vnet1 that contains two subnets named Subnet1 and Subnet2.

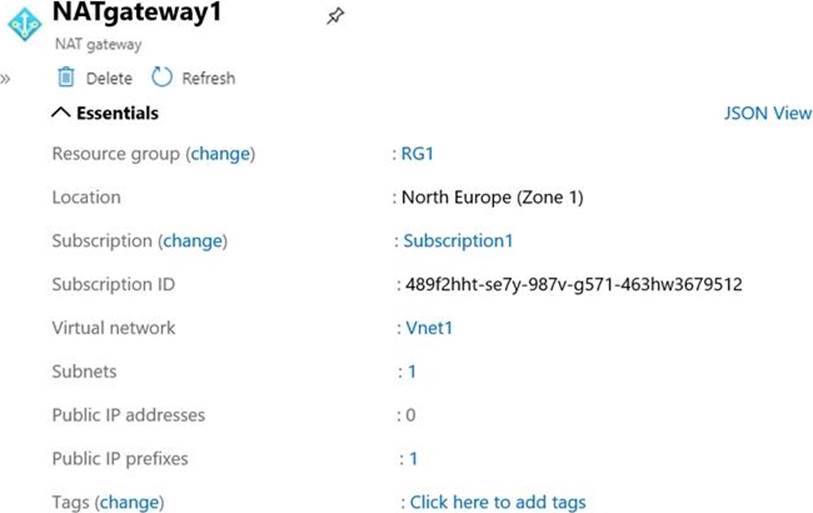

You have the NAT gateway shown in the NATgateway1 exhibit.

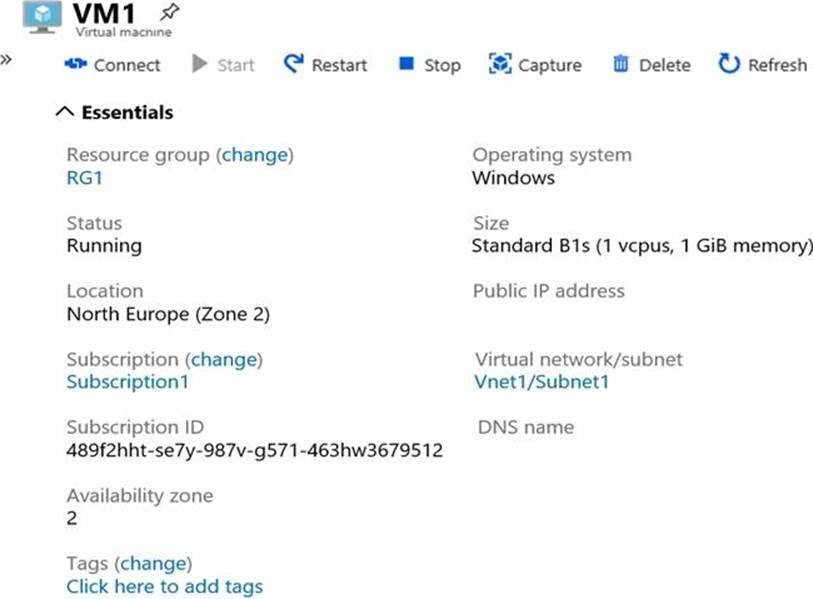

You have the virtual machine shown in the VM1 exhibit.

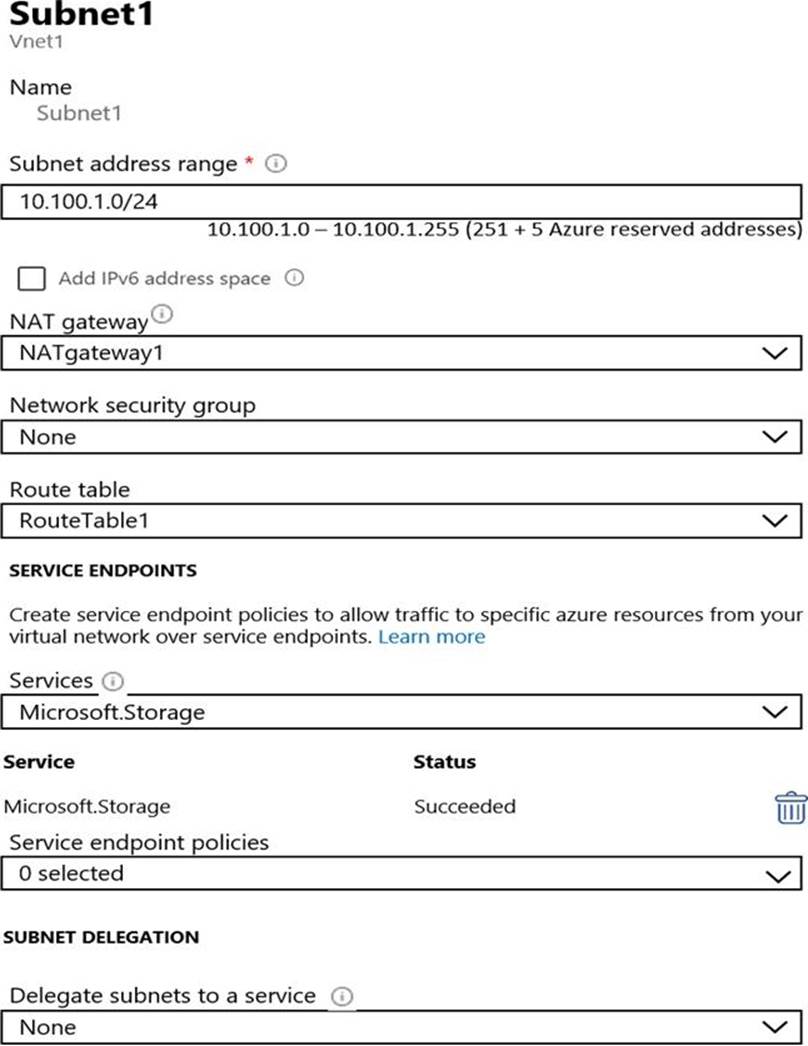

Subnet1 is configured as shown in the Subnet1 exhibit.

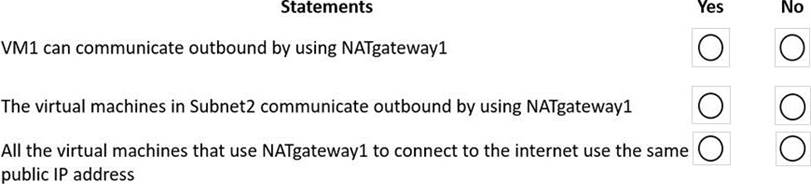

For each of the following statements, select Yes of the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

23. HOTSPOT

You have the network security groups (NSGs) shown in the following table.

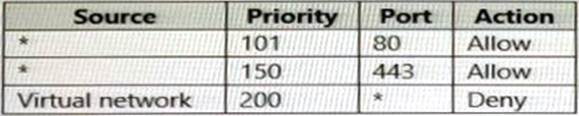

In NSG1, you create inbound rules as shown in the following table.

You have the Azure virtual machines shown in the following table.

NSG2 has only the default rules configured.

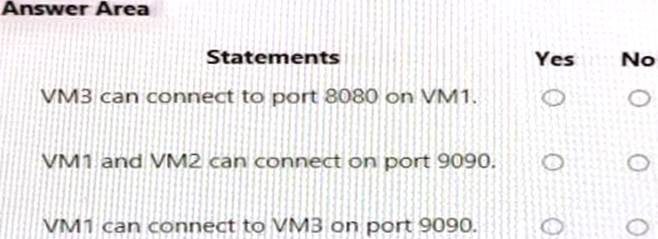

For each of the following statements, select Yes if the statement is true. Otherwise, select No. NOTE: Each correct selection is worth one point.

24. You plan to publish a website that will use an FQDN of www.contoso.com.

The website will be hosted by using the Azure App Service apps shown in the following table.

You plan to use Azure Traffic Manager to manage the routing of traffic for www.contoso.com between AS1 and AS2.

You need to ensure that Traffic Manager routes traffic for www.contoso.com.

Which DNS record should you create?

two A records that map wmv.contoso.com to 131 107 100 1 and 131 107 200 1

a CNAME record that maps www.contoso.com to TMprofile1.azurefd.net

a CNAME record that mapswww.contoso.comtoTMprofile1.trafficmanager.net

a TXT record that contains a string ofas1.contoso.com and as2.contoso.com in the details
