Want to pass your Juniper JN0-349 exam on your first try? FreeTestShare has put up a comprehensive collection of Juniper JNCIS-ENT JN0-349 Practice Exam Questions to help you prepare for the JN0-349 Exam. Our JN0-349 Practice Exam, which simulates the actual exam environment, has been created to make your preparation for the JN0-349 certification exam easier. You will find that all of the Juniper JNCIS-ENT JN0-349 Practice Exam Questions are quite similar to those you would encounter on the actual Enterprise Routing and Switching, Specialist (JNCIS-ENT) certification test.

Test yourself with these JN0-349 practice exam questions now!

Page 1 of 3

1. Which static route next-hop value indicates that the packet will be silently dropped?

resolve

discard

reject

next-table

2. In which two STP states is a port active and a MAC address learned? (Choose two.)

blocking

forwarding

disabled

learning

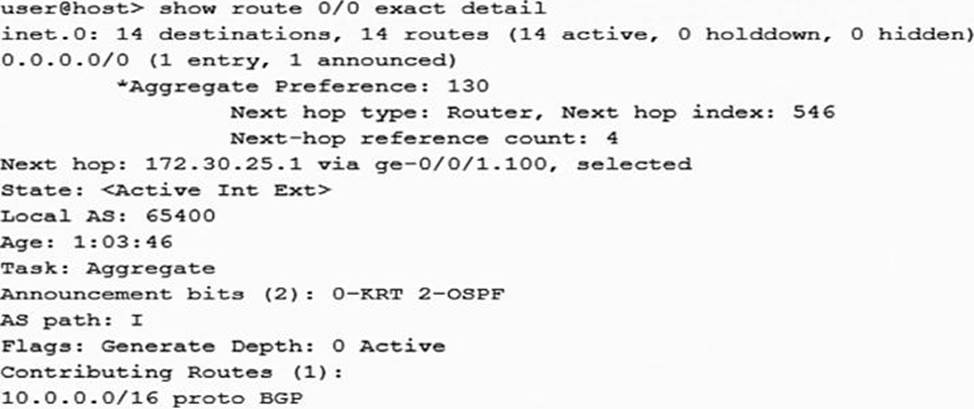

3. Click the Exhibit button.

Referring to the output shown in the exhibit, which two statements are true?

The route is active

The route is not active

The route is a generate route

The route is an aggregate route

4. Click the Exhibit button.

Based on the output shown in the exhibit, which statement is correct?

The ge-0/0/9 interface is using the default interface priority value.

This switch has a bridge priority of 8k.

This switch is currently blocking all traffic.

The ge-0/0/15 interface is using the default port cost.

5. What are two characteristics of IS-IS CSNPs? (Choose two.)

IS-IS CSNPs contain header information for all link-state PDUs.

IS-IS CSNPs are used to request a copy of a missing link state PD

IS-IS CSNPs are used to maintain the link-state database synchronization.

IS-IS CSNPs contain header information for specific requested link-state PDUs.

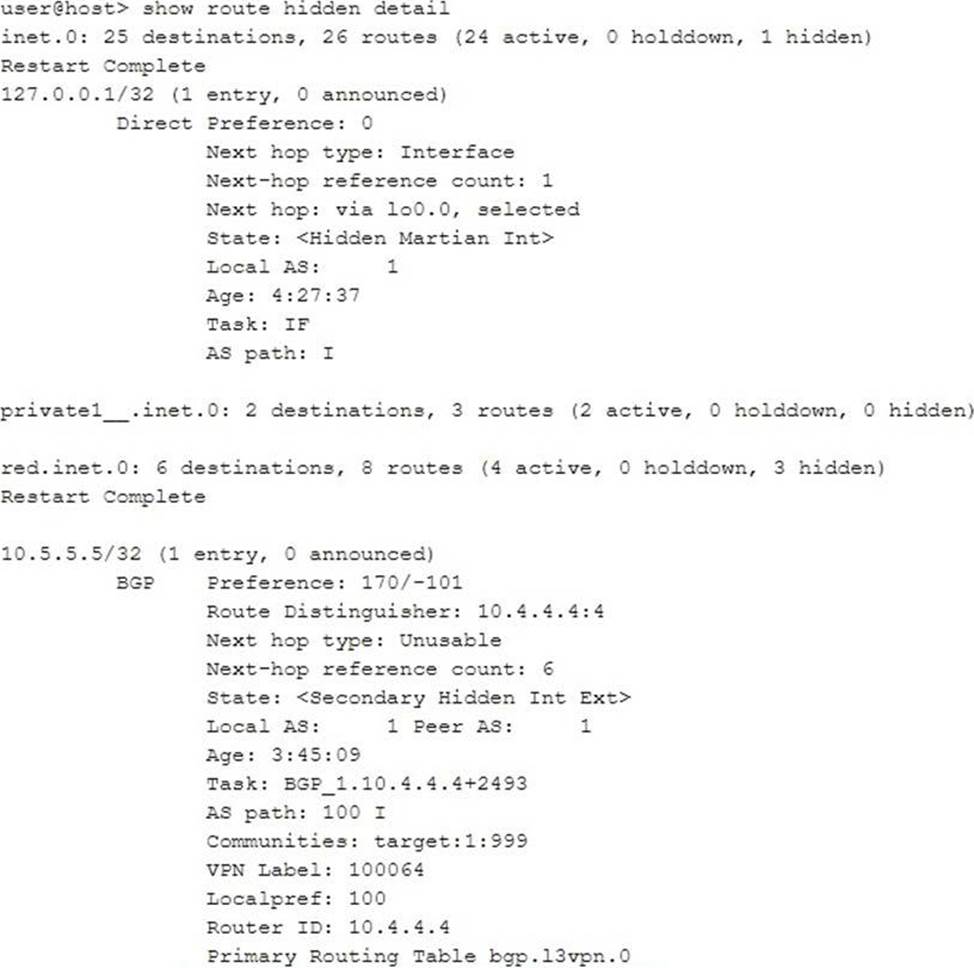

6. Click the Exhibit button.

Referring to the exhibit, why is the route for 10.5.5.5 hidden?

It is a martian route.

It has an invalid community.

It is an L3VPN route.

The next hop cannot be resolved.

7. Which statement about configuring persistent MAC learning is correct?

Persistent MAC learning requires 802.1X authentication.

Persistent MAC learning can be configured on access mode interfaces.

Persistent MAC learning flushes dynamically learned MAC addresses on reboots.

Persistent MAC learning cannot be configured on redundant trunk groups.

8. What are the three possible port states when using RSTP? (Choose three.)

forwarding

learning

discarding

listening

tagging

9. Which two requirements must be satisfied before graceful restart will work? (Choose two.)

a stable network topology

a neighbor configured with BFD

a neighbor configured with graceful restart

a neighbor with an uptime greater than an hour

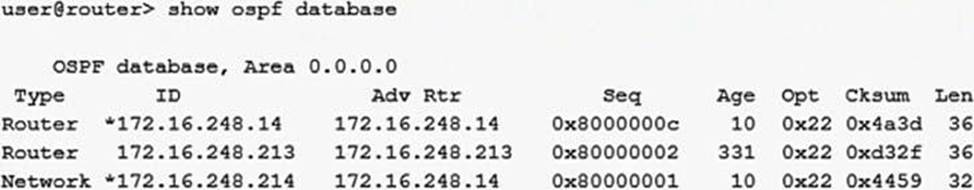

10. Click the Exhibit button.

Referring to the exhibit, what do the asterisks (*) indicate?

The entries are new

The entries are stale

The router originated the entries

The router received the entries

Page 2 of 3

11. You have configured the router with an IS-IS interface metric of 2048.

However, the IS-IS interface metric of 63 is being applied for the interface of this router.

What must you do to enable the larger metric value?

Enable wide metrics.

Disable narrow metrics.

Restart the IS-IS protocol.

Enable level 1 IS-IS routing.

12. Which three mechanisms are associated with the bridging process? (Choose three.)

blocking

flooding

aging

filtering

listening

13. You are adding a new EX4300 member switch to your existing EX4300 Virtual Chassis. However, the new member is not running the same Junos version as the other members.

By default, what is the expected behavior in this scenario?

the Virtual Chassis will transition into a split brain situation between the existing master Routing Engine and the switch running the different version.

The new switch will automatically pull the correct version from the master Routing Engine and perform the necessary upgrade.

The new switch will be assigned a member ID and then placed in an inactive state.

The new switch is not recognized by the Virtual Chassis.

14. You are enabling dynamic ARP inspection on an EX4300 switch.

Which service is enabled by default in this scenario?

DHCP snooping

persistent MAC learning

MAC limiting

IP Source Guard

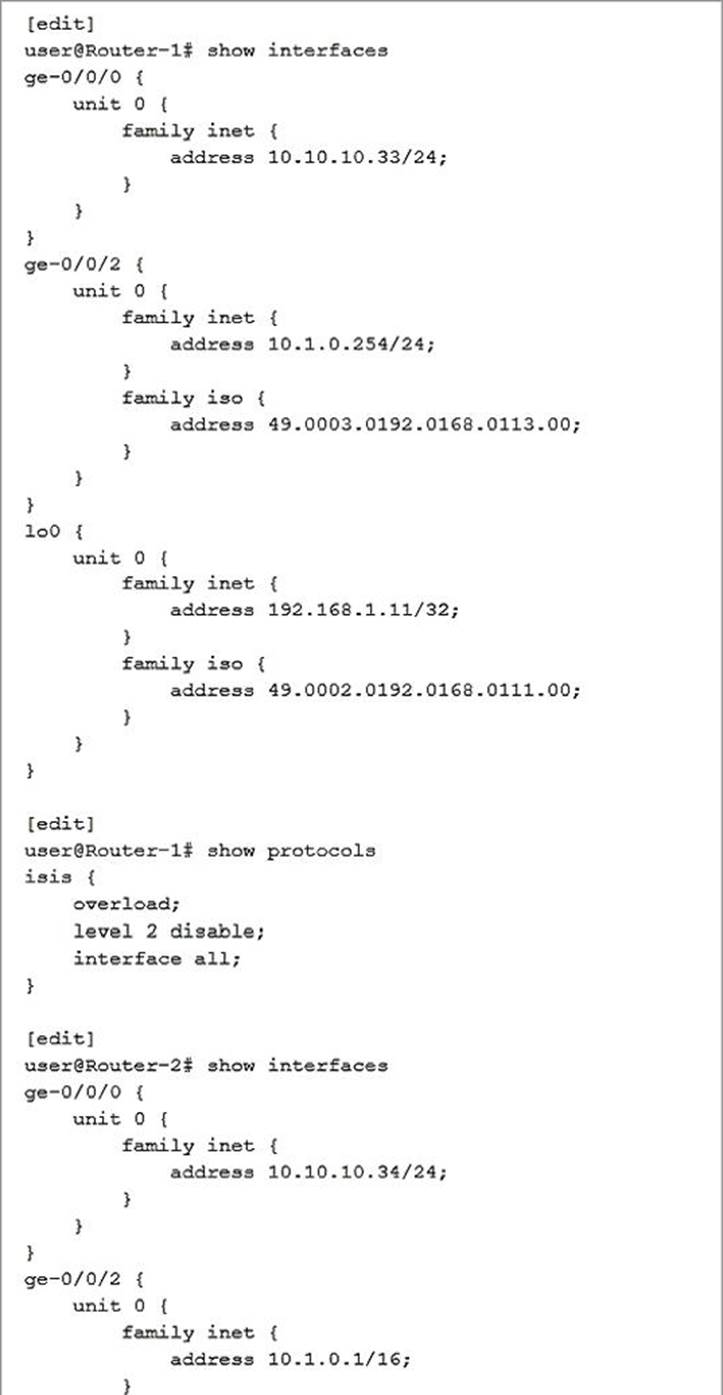

15. Click the Exhibit button.

Referring to the exhibit, Router-1 and Router-2 are failing to form an IS-IS adjacency.

What should you do to solve the problem?

Remove the overloaded statement from Router-1.

Change the IP subnet masks to match on the ge-0/0/2 interfaces of both routers.

Change the ISO areas on the lo0 interfaces to match on both routers.

Remove the ISO address from ge-0/0/2 on Router-1.

16. You want to use filter-based forwarding (FBF) to forward traffic sourced from subnet 10.0.0.0/24 to a specific destination.

Which two routing instance types would enable you to accomplish this task? (Choose two.)

virtual switch

virtual routing and forwarding

virtual router

forwarding

17. Which statement is true about IP-IP tunnels?

The time-to-live value of the original packet is decremented.

IP-IP tunnels are protocol agnostic.

The packet is encapsulated unchanged before entering the tunnel.

The packet header is replaced before entering the tunnel.

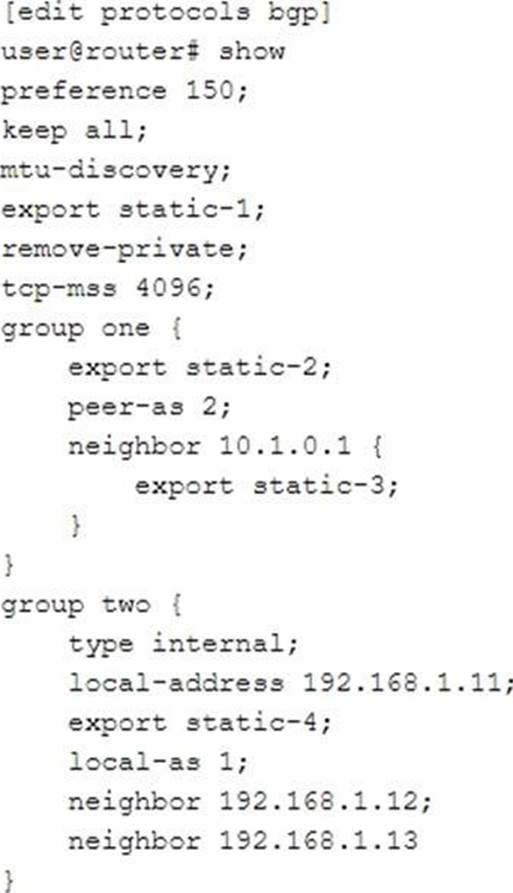

18. Click the Exhibit button.

Referring to the exhibit, which policy will export routes to IBGP peers?

static-3

static-4

static-1

static-2

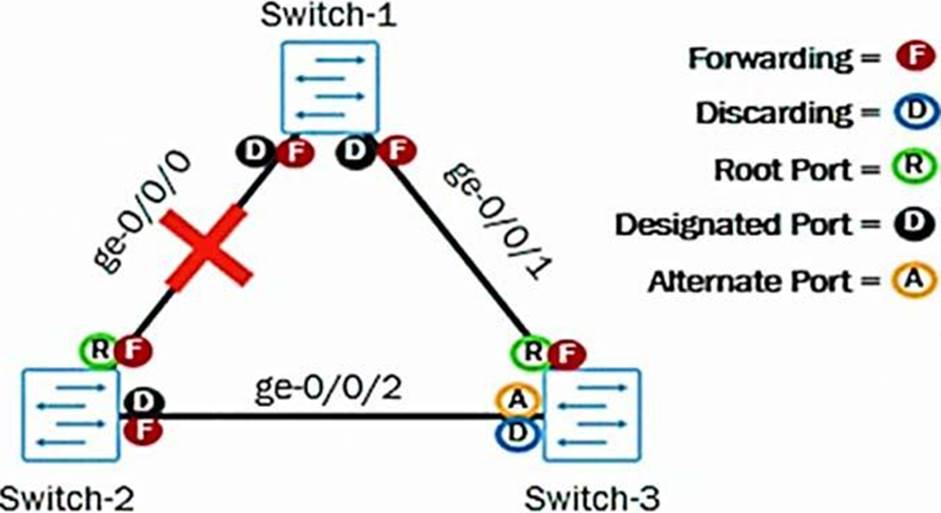

19. Click the Exhibit button.

You manage the Layer 2 network shown in the exhibit. You experience a failure on the ge-0/0/0 link between Switch-1 and Switch-2.

Which statement is correct about the expected behavior?

Switch-2 will remove itself from the RSTP topology

Switch-2’s ge-0/0/2 port role and state will transition to root and forwarding

Switch-2 will become the root bridge for a separate RSTP topology

Switch-2’s ge-0/0/2 port role and state will remain as designated and forwarding

20. Which two routes belong to the 172.16.0.0/22 aggregate route? (Choose two.)

172.16.4.0/24

172.16.0.0/24

172.16.5.0/24

172.16.3.0/24

Page 3 of 3

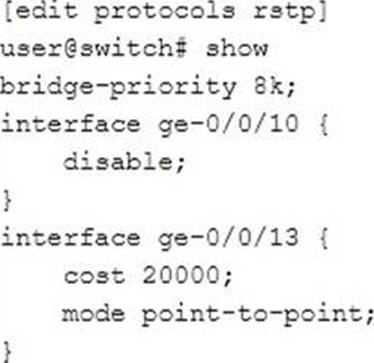

21. Click the Exhibit button Referring to the exhibit, which two statements are correct? (Choose two.)

The ge-0/0/10 interface will not participate in the RSTP topology.

The ge-0/0/13 interface will be selected as the forwarding interface.

This device must be selected as the root bridge.

The ge-0/0/10 interface will be part of the RSTP topology but will block incoming BPDUs.

22. Your network connections to the Internet through two different ISPs using EBGP. You must ensure that ISP1 is the primary path used for all traffic entering your network while using ISP2 as a backup path.

In this scenario, which statement is correct?

You should use a lower MED value on routes sent to ISP1.

You should assign a higher local preference on routes that you are sending to ISP1.

You should change the next hop for all routers sent to ISP2.

You should prepend your local AS number three times on routes that you are sending to ISP2.

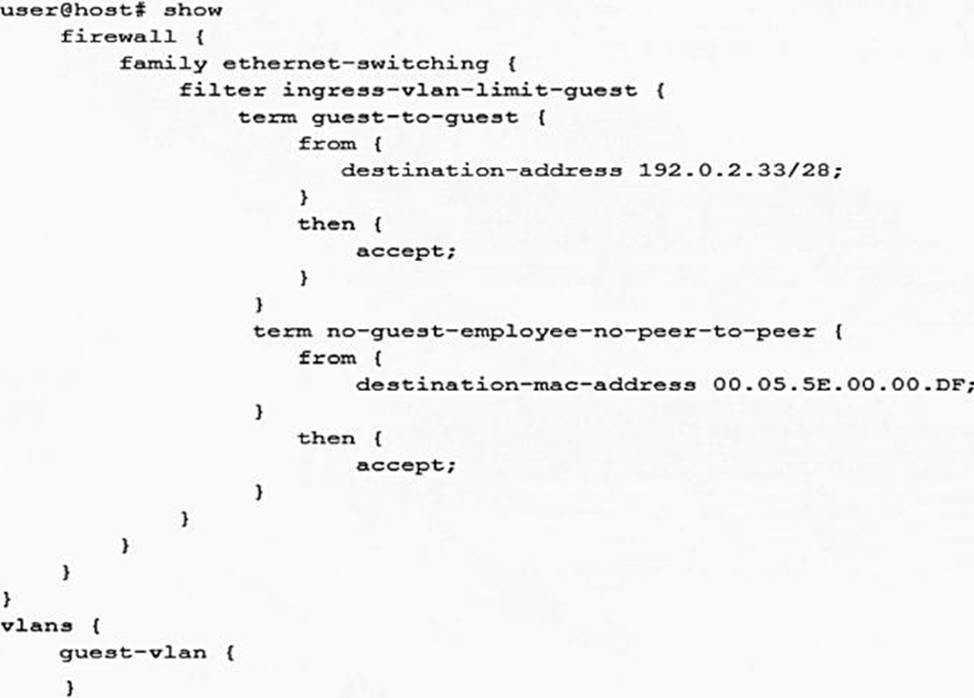

23. Click the Exhibit button.

A recent security audit indicates that peer-to-peer applications are allowed on the guest VLAN and employees may have been using the guest VLAN for this purpose. You deploy the configuration shown in the exhibit, but it does not stop the peer-to-peer traffic.

In this scenario, what must you do to implement the security policy?

Implement 802.1X on the guest VLAN

Attach the filter to the VLAN

Deploy storm control to block unknown unicast traffic

Use persistent MAC learning

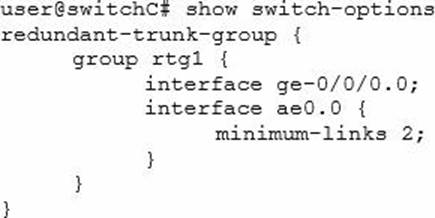

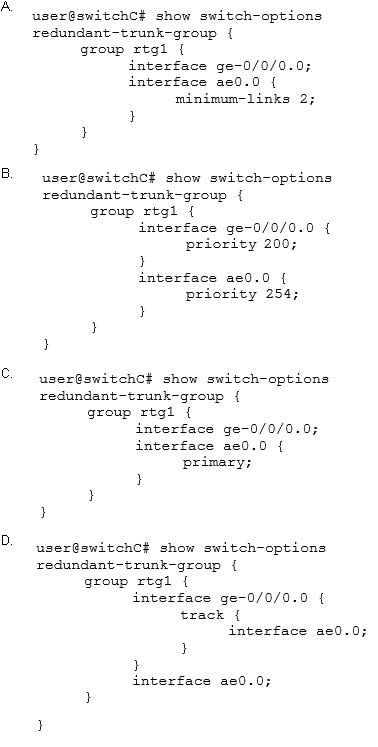

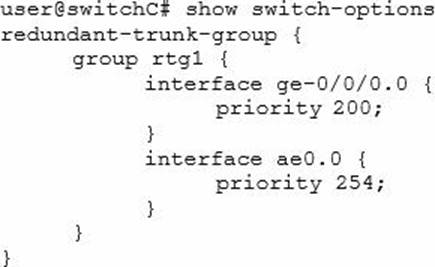

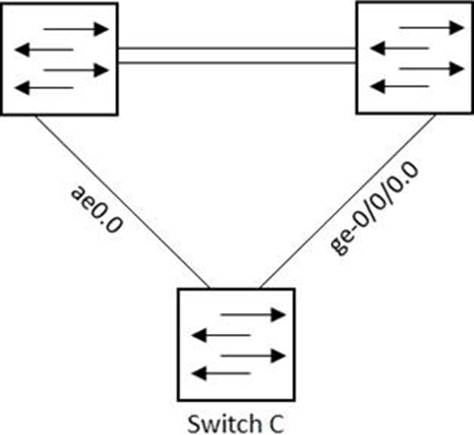

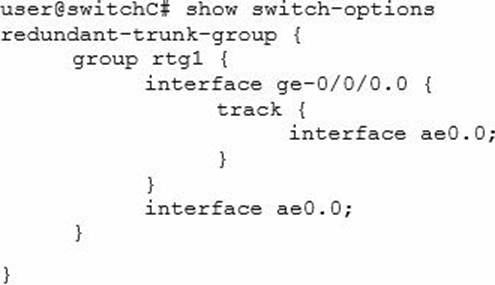

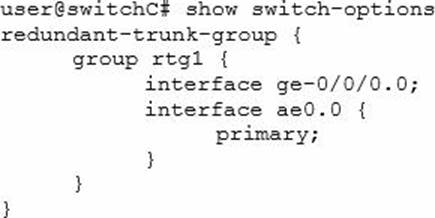

24. Referring to the exhibit, which configuration will force traffic to always use ae0.0 as long as it is active?
