300-515 Implementing Cisco Service Provider VPN Services (SVPI) exam is one of the concentration test of Cisco CCNP Service Provider certification. If you are planning to earn the certification, you can choose to take 300-515 SPVI exam. Each 300-515 SPVI candidate has 90 minutes to finish the test.

Before taking the 300-515 exam, you may test your knowledge with a free 300-515 practice test. FreeTestShare CCNP Service Provider 300-515 test dumps fully describe what you will face on the real 300-515 exam, allowing you to pass the CCNP 300-515 exam quickly. To put your skills to the test, try 300-515 free practice questions!

Page 1 of 2

1. An engineer needs to improve MPLS network management by implementing a set of tools to support the NOC engineers in troubleshooting network failures .

Which feature should the engineer implement to check the connectivity of the MPLS LSP between the ingress and egress PE routers?

MPLS OAM

MPLS-TP

LDP autodiscovery

extended ping

2. A network architect is troubleshooting the L2TPv3 tunneling security due to the untrusted nature of the underlaying network .

Which two L2TPv3 features does the architect deploy to address the ongoing issues? (Choose two.)

TCP MD5 authentication

control message hashing

CHAP authentication

control message rate limiting

asymmetric mutual authentication with PSK

3. The network engineering group of a large ISP needs to harden the management plane of its Cisco 9000 Series ASRs. While addressing IPv6 ICMP issues, they realized they have to limit the rate at which IPv6 ICMP error messages are sent out on the network .

Which command do they need to apply?

icmp ipv6 rate-limit unreachable 1000

ipv6 rate-limit 1000

icmp ipv4 rate-limit unreachable 1000

ipv6 icmp error-interval 50 20

4. A network engineer is implementing Layer 3 MPLS VPNs on Cisco IOS/IOS XE PE routers .

Which PE-to-CE routing protocol requires a separate routing process to be created for each VRF?

RIPv2

OSPF

BGP

EIGRP

5. An ISP provides a major client MPLS VPN for managed services. The MPLS engineering team needs to use the advanced VPN feature of selective VRF import so that only specific

prefixes are present in the required VPNs.

Which aspect of this feature must the team consider?

A route must pass the import route map first and then the route target import filter.

The routers that are imported in the VRF can be BGP and IGP routes, so other match conditions in the route map, besides communities, can be used.

The import-map command is applied under the PE interface that connects to the CE router.

A route is imported into the VRF only when at least one RT that is attached to the route matches one RT that is configured in the VRF and the route is permitted by the import route map.

6. While troubleshooting an AToM L2VPN service, a network consultant notices that the AC Layer 2 encapsulations are different .

Which action should the consultant take in order to make the MPLS L2VPN work?

tag-rewrite on the ingress and egress PE router

interworking IP configuration on the last PE router before label disposition

nonrouted interworking setup to properly translate only the Layer 2 information from the AC

interworking IP configuration on both the AC terminations on the PEs

7. Which optional information can be included with an IPv6 ping to support the troubleshooting process?

IPv4 IP address

source MAC address

destination MAC address

IPv6 hostname

8. While implementing Layer 3 MPLS VPN, which feature should an engineer use at the PEs to transform the customer IPv4 prefixes into a unique 96-bit prefix

VC ID

PW ID

9. How do Ethernet virtual circuits provide a way for service providers to maximize the use of VLAN tags'-1

They add an additional tag to VLANs that allows up to two switch ports to use the same globally configured VLAN I

They redefine the VLAN tag to include classification, forwarding, and QoS using MPLS labels and EXP bits

They separate the classification and forwarding concepts for VLAN tagging which allows multiple switch ports to use the same VLAN ID without it being configured globally.

They assign VLAN IDs to VTP domains so that the same VLAN ID are used more than once globally.

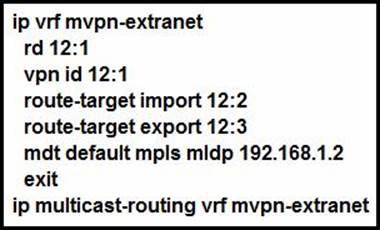

10. What is the effect of this configuration?

The mroute table is cleared.

Router 1 accepts multicast routes with a tag of 12:1

A Cisco MPLS TE tunnel is generated with 192.168.1.2 as the source IP address of router 1.

An LSP virtual interface tunnel is created.

Page 2 of 2

11. Which two BGP attributes prevent loops in a route reflector environment? (Choose two.)

cluster ID

local preference

origin

originator ID

AS_PATH

12. You are writing the requirements for an MPLS L3VPN environment that uses MP-BGP between PE routers. In this environment, route targets and route distinguishers need to be advertised between the PE routers.

Which three operations meet these requirements? (Choose three.)

mandatory creation of PE-to-PE BGP sessions between the outgoing interface IP addresses

advertisement of standard communities, enabled on the PE-to-PE BGP neighbors

creation of PE-to-PE BGP sessions between loopback IP addresses

full mesh of IBGP sessions

full mesh of EBGP sessions and partial mesh of IBGP sessions

advertisement of extended communities, enabled on the PE-to-PE BGP neighbors

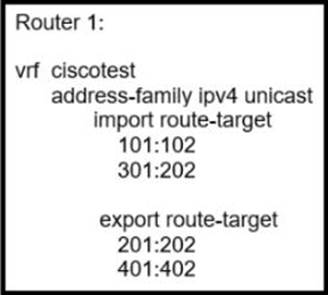

13. Refer to the exhibit.

An engineer has configured router 1 to provide shared services to clients behind router 2.

To complete the implementation so that routes from router 1 are accepted, what must the engineer configure on router 2?

with import route targets 101:102 and 202:201

with import route targets 201:202 and 401:402

with export route targets 301:202 and 101:102

with export route targets 201:202 and 401:402

14. How does Layer 3 VPN traffic traverse an ISP network?

Devices on the network use MPLS labels to share VPN routes between P routers in the network.

Devices on the network use LSAs to share routes between P routers in the network.

Devices on the network use MPLS labels to move VPN traffic through the network.

Devices on the network use GRE tunnels to move traffic between VRFs.

15. What do routers on the network use to avoid routing loops when OSPF is running as the PE-CE routing protocol on a service provider network?

the AS-Override feature

the DN bit with type 3, 5, or 7 LSA

the domain tag for type 2 LSA

sham links to create a super backbone over the service provider network

16. What do EVPN single-active and all-active have in common?

They are default gateway redundancy options.

They are multihoming mechanisms used for CE devices.

They are used to provide single connection from a CE device to a service provider.

They are both roles that a designated router can take when MPLS is used with EVP

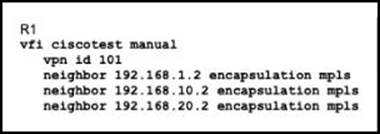

17. Refer to the exhibit.

An organization is running H-VPLS on a network comprising four routers in a hub-and-spoke topology with R1 as the hub. An engineer added a new spoke with multiple VCs to the network, and now traffic cannot flow properly.

How should the engineer update the configuration on R1 to correct the problem?

Disable spanning tree to allow loops to occur within the hub-and-spoke topology.

Disable split horizon to allow multiple VCs per spoke

Disable Cisco Discovery Protocol to allow MPLS to share labels between the designated spokes

Disable Cisco Discovery Protocol to allow for neighbor discovery

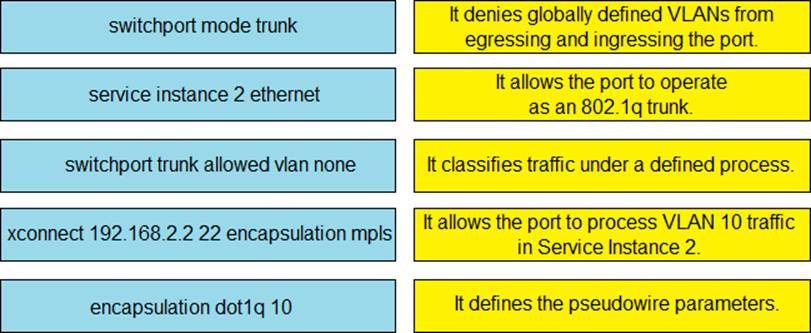

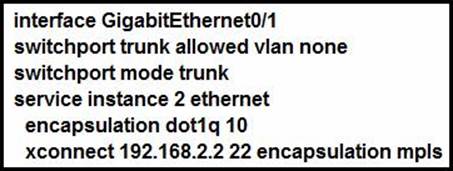

18. DRAG DROP

Drag and drop the EVC configuration items from the left onto the correct descriptions on the right.
