Candidates and students who want to pass 200-301 Cisco Certified Network Associate exam and achieve CCNA certification can choose real 200-301 dumps questions to effectively prepare for Cisco 200-301 exam well. Learning 200-301 exam dumps and practicing the real 200-301 questions and answers will make sure that you can answer CCNA 200-301 exam smoothly.

To help you prepare for the exam, take a free 200-301 practice test.

Page 1 of 17

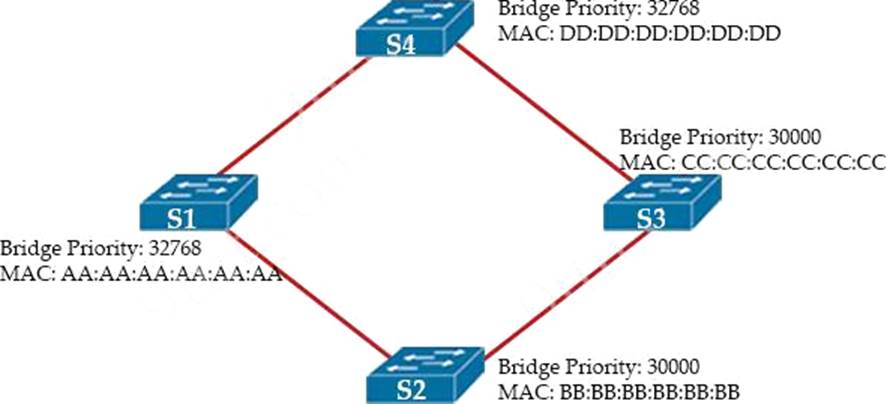

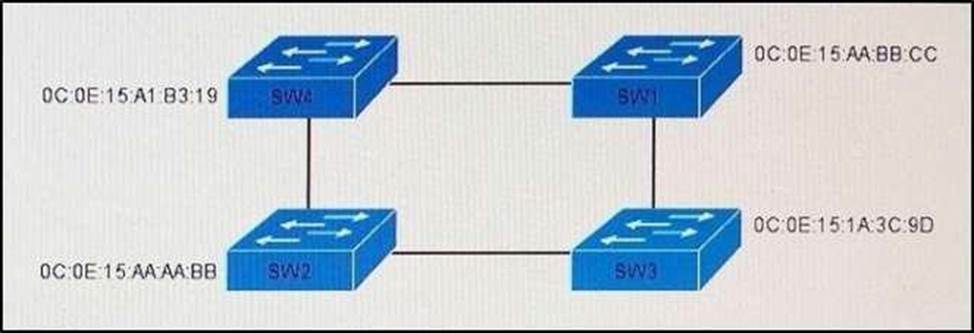

1. Refer to the exhibit.

Which switch becomes the root bridge?

2. What are two benefits of using the PortFast feature? (Choose two)

Enabled interfaces are automatically placed in listening state

Enabled interfaces come up and move to the forwarding state immediately

Enabled interfaces never generate topology change notifications.

Enabled interfaces that move to the learning state generate switch topology change notifications

Enabled interfaces wait 50 seconds before they move to the forwarding state

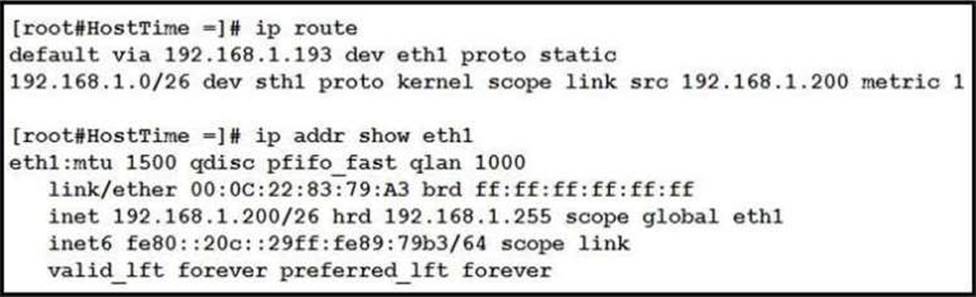

3. Drag and drop the networking parameters from the left on to the correct values on the right.

4. Which 802.11 frame type is indicated by a probe response after a client sends a probe request?

action

management

control

data

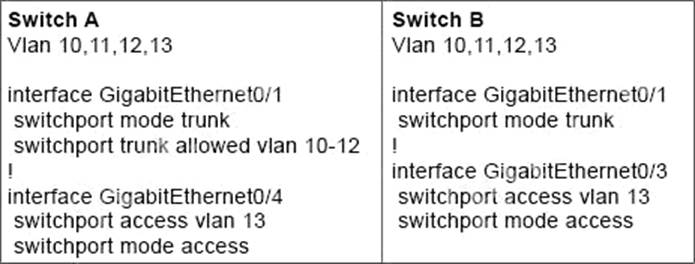

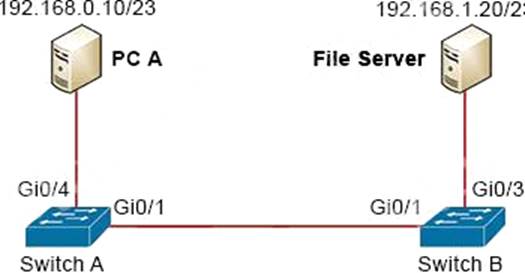

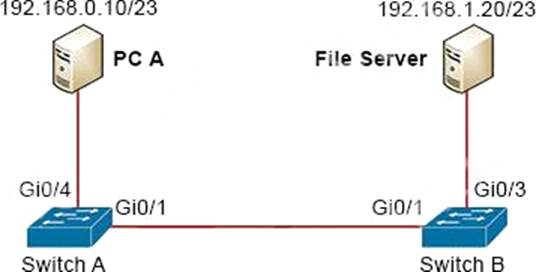

5. Refer to the exhibit.

A network engineer must configured communication between PC A and the File Server.

To prevent interruption for any other communications, which command must be configured?

Switch trunk allowed vlan 12

Switchport trunk allowed vlan none

Switchport trunk allowed vlan add 13

Switchport trunk allowed vlan remove 10-11

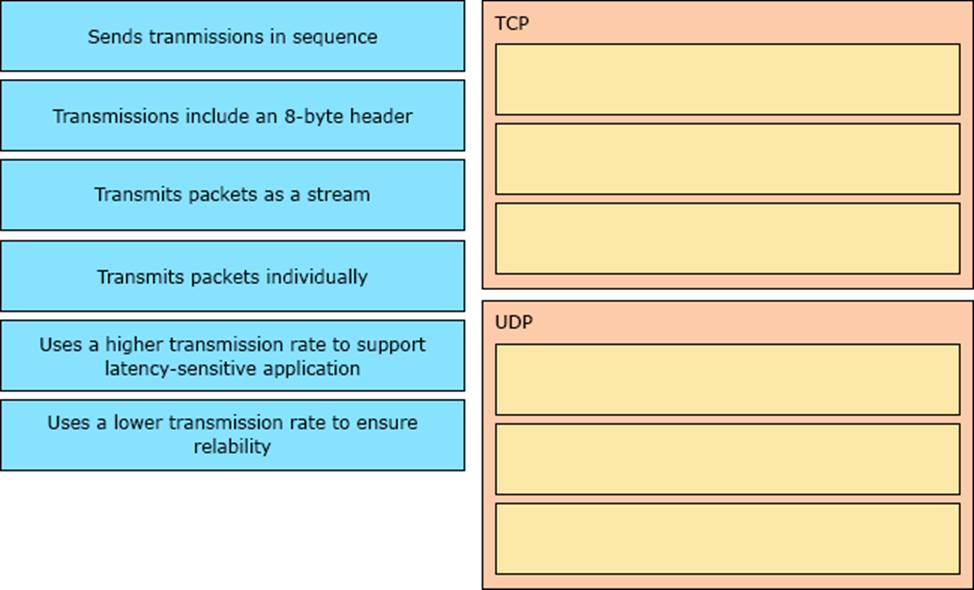

6. Drag the descriptions of IP protocol transmissions from the left onto the IP traffic types on the right.

7. What is the purpose of the ip address hcp command?

to configure an Interface as a DHCP server

to configure an interface as a DHCP helper

to configure an interface as a DHCP relay

to configure an interface as a DHCP client

8. Which function does an SNMP agent perform?

it sends information about MIB variables in response to requests from the NMS

it coordinates user authentication between a network device and a TACACS+ or RADIUS server

it requests information from remote network nodes about catastrophic system events.

it manages routing between Layer 3 devices in a network

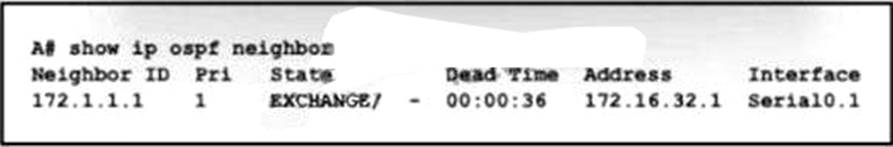

9. Refer to the exhibit.

An engineer assumes a configuration task from a peer Router A must establish an OSPF neighbor relationship with neighbor 172.1.1.1. The output displays the status of the adjacency after 2 hours.

What is the next step in the configuration process for the routers to establish an adjacency?

Configure router A to use the same MTU size as router

Set the router B OSPF ID to a nonhost address.

Configure a point-to-point link between router A and router

Set the router B OSPF ID to the same value as its IP address

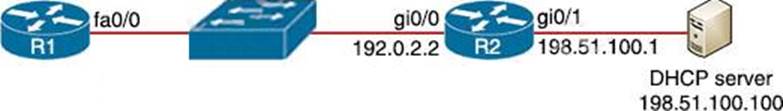

10. Refer to the exhibit.

An engineer deploys a topology in which R1 obtains its IP configuration from DHCP. If the switch and DHCP server configurations are complete and correct.

Which two sets of commands must be configured on R1 and R2 to complete the task? (Choose two)

R1(config)# interface fa0/0 R1(config-if)# ip helper-address 198.51.100.100

R2(config)# interface gi0/0 R2(config-if)# ip helper-address 198.51.100.100

R1(config)# interface fa0/0 R1(config-if)# ip address dhcp R1(config-if)# no shutdown

R2(config)# interface gi0/0 R2(config-if)# ip address dhcp

R1(config)# interface fa0/0 R1(config-if)# ip helper-address 192.0.2.2

Page 2 of 17

11. Which implementation provides the strongest encryption combination for the wireless environment?

WPA2 + AES

WPA + AES

WEP

WPA + TKIP

12. What is the primary effect of the spanning-tree portfast command?

It enables BPDU messages

It minimizes spanning-tree convergence time

It immediately puts the port into the forwarding state when the switch is reloaded

It immediately enables the port in the listening state

13. 1.What are two benefits of network automation? (Choose two)

reduced operational costs

reduced hardware footprint

faster changes with more reliable results

fewer network failures

increased network security

14. Refer to the exhibit.

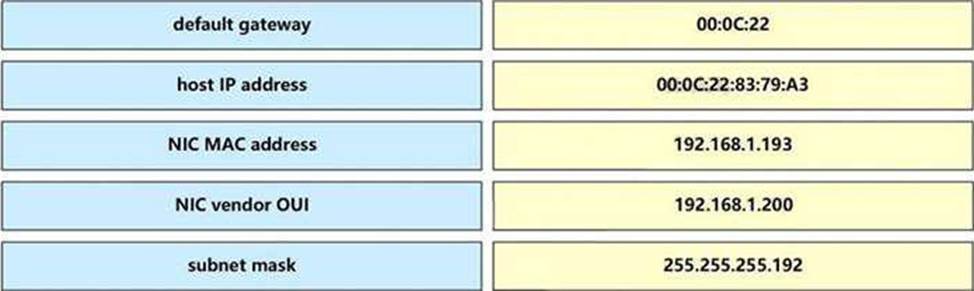

Drag and drop the networking parameters from the left on to the correct values on the right.

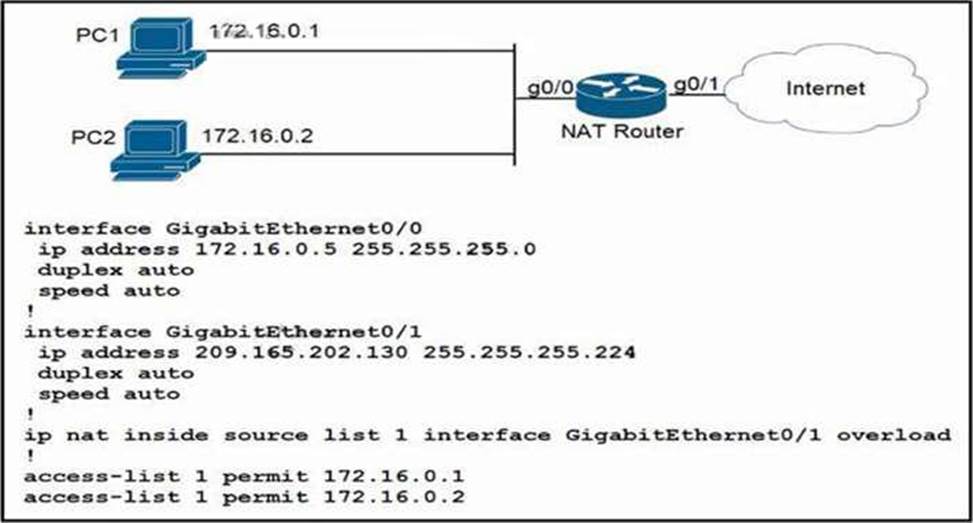

15. Refer to the exhibit.

How should the configuration be updated to allow PC1 and PC2 access to the Internet?

Modify the configured number of the second access list.

Add either the ip nat {inside|outside} command under both interfaces.

Remove the overload keyword from the ip nat inside source command.

Change the ip nat inside source command to use interface GigabitEthernet0/0.

16. If a notice-level messaging is sent to a syslog server, which event has occurred?

A network device has restarted.

An ARP inspection has failed.

A routing instance has flapped.

A debug operation is running.

17. What is a characteristic of the REST API?

evolved into what became SOAP

used for exchanging XML structured information over HTTP or SMTP

considered slow, complex, and rigid

most widely used API for web services

18. What is the purpose of traffic shaping?

to mitigate delays over slow links

to provide fair queuing for buffered flows

to limit the bandwidth that a flow can use to

be a marking mechanism that identifies different flows

19. Which QoS per-hop behavior changes the value of the ToS field in the IPv4 packet header?

shaping

classification

policing

marking

20. Which action is taken by the data plane within a network device?

forwards traffic to the next hop

constructs a routing table based on a routing protocol

provides CLI access to the network device

looks up an egress interface in the forwarding information base

Page 3 of 17

21. Which QoS Profile is selected in the GUI when configuring a voice over WLAN deployment?

Bronze

Platinum

Silver

Gold

22. Which two statements about exterior routing protocols are true? (Choose two.)

They determine the optimal within an autonomous system.

They determine the optimal path between autonomous systems.

BGP is the current standard exterior routing protocol.

Most modern networking supports both EGP and BGP for external routing.

Most modern network routers support both EGP and EIGRP for external routing.

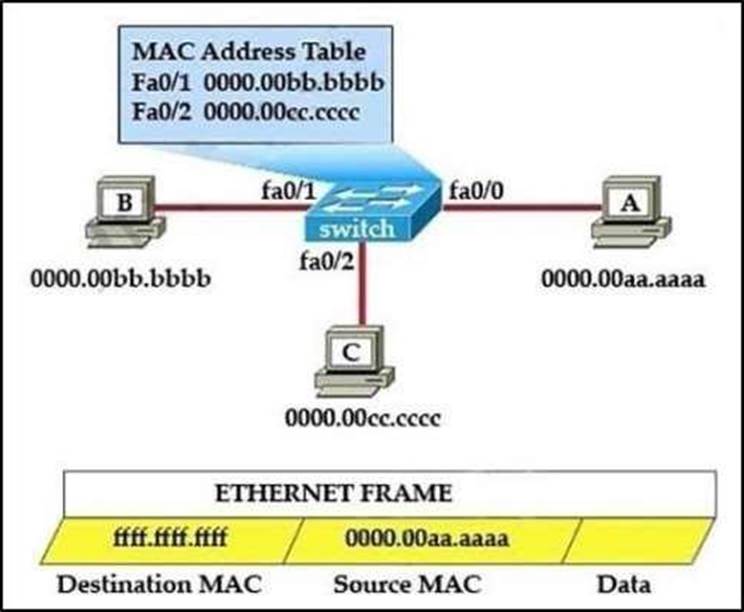

23. What is the destination MAC address of a broadcast frame?

00:00:0c:07:ac:01

ff:ff:ff:ff:ff:ff

43:2e:08:00:00:0c

00:00:0c:43:2e:08

00:00:0c:ff:ff:ff

24. Which two statements about EtherChannel technology are true? (Choose two.)

EtherChannel provides increased bandwidth by bundling existing FastEthernet or Gigabit Ethernet interfaces into a single EtherChannel.

STP does not block EtherChannel links.

You can configure multiple EtherChannel links between two switches, using up to a limit of sixteen physical ports.

EtherChannel does not allow load sharing of traffic among the physical links within the EtherChannel.

EtherChannel allows redundancy in case one or more links in the EtherChannel fail.

25. Which plane is centralized by an SON controller?

management-plane

control-plane

data-plane

services-plane

26. What is a requirement for nonoverlapping Wi-Fi channels?

different security settings

discontinuous frequency ranges

different transmission speeds

unique SSIDs

27. What is the primary purpose of a First Hop Redundancy Protocol?

It allows directly connected neighbors to share configuration information.

It allows a router to use bridge priorities to create multiple loop-free paths to a single destination.

It reduces routing failures by allowing Layer 3 load balancing between OSPF neighbors that have the same link metric.

It reduces routing failures by allowing more than one router to represent itself, as the default gateway of a network.

28. An implementer is preparing hardware for virtualization to create virtual machines on a host.

What is needed to provide communication between hardware and virtual machines?

hypervisor

router

straight cable

switch

29. What are two reasons for an engineer to configure a floating state route? (Choose two)

to automatically route traffic on a secondary path when the primary path goes down

to route traffic differently based on the source IP of the packet

to enable fallback static routing when the dynamic routing protocol fails

to support load balancing via static routing

to control the return path of traffic that is sent from the router

30. Why was the RFC 1918 address space defined?

conserve public IPv4 addressing

preserve public IPv6 address space

reduce instances of overlapping IP addresses

support the NAT protocol

Page 4 of 17

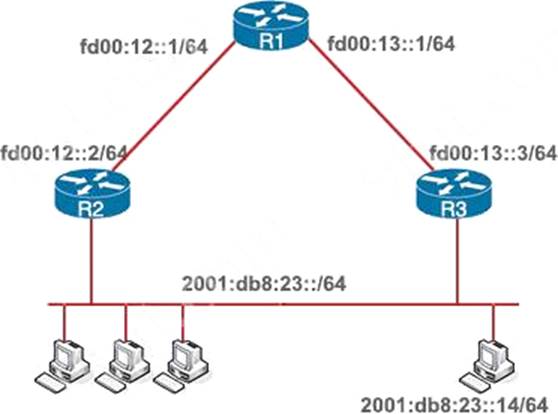

31. Refer to the exhibit.

Which two commands, when configured on router R1, fulfill these requirements? (Choose two.)

C Packets toward the entire network 2001:db8:23::/64 must be forwarded through router R2.

C Packets toward host 2001:db8:23::14 preferably must be forwarded through R3.

Ipv6 route 2001:db8:23::/128 fd00:12::2

Ipv6 route 2001:db8:23::14/128 fd00:13::3

Ipv6 route 2001:db8:23::14/64 fd00:12::2

Ipv6 route 2001:db8:23::/64 fd00:12::2

Ipv6 route 2001:db8:23::14/64 fd00:12::2 200

32. Drag and drop each broadcast IP address on the left to the Broadcast Address column on the right Not all options are used.

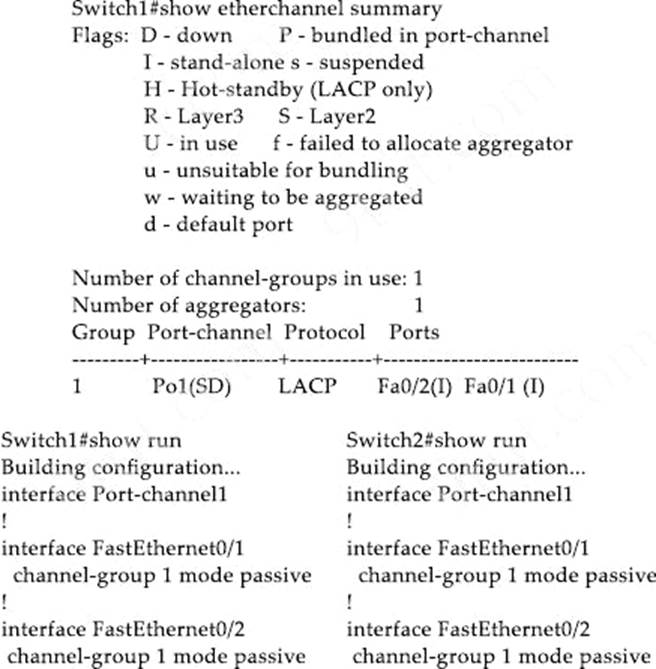

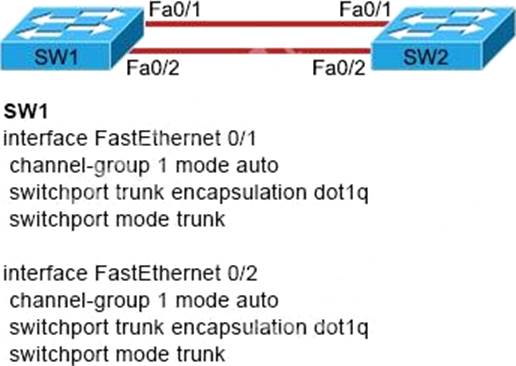

33. Refer to the exhibit.

Which change to the configuration on Switch allows the two switches to establish an GtherChannel?

Change the protocol to EtherChannel mode on.

Change the LACP mode to active

Change the LACP mode to desirable

Change the protocol to PAqP and use auto mode

34. What is a difference between local AP mode and FiexConnet AP mode?

Local AP mode creates two CAPWAP tunnels per AP to the WLC

FiexConnect AP mode fails to function if me AP loses connectivity with the WLC

FlexConnect AP mode bridges the traffic from the AP to the WLC when local switching is configured

Local AP mode causes the AP to behave as if it were an autonomous AP

35. Which WAN topology provides a combination of simplicity quality, and availability?

partial mesh

full mesh

point-to-point

hub-and-spoke

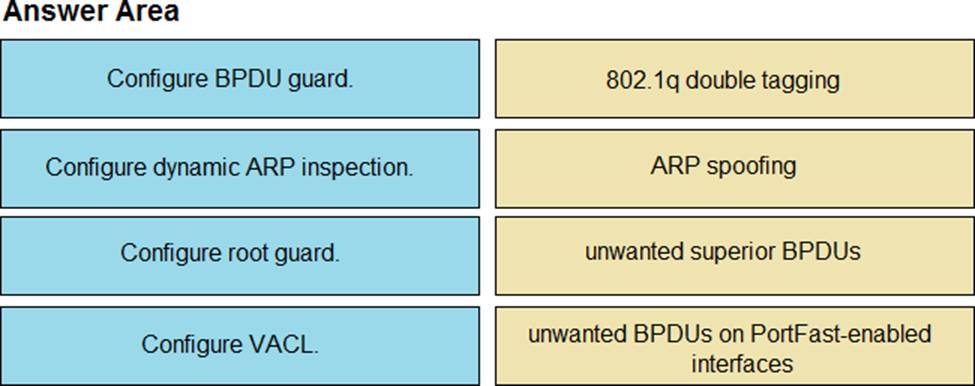

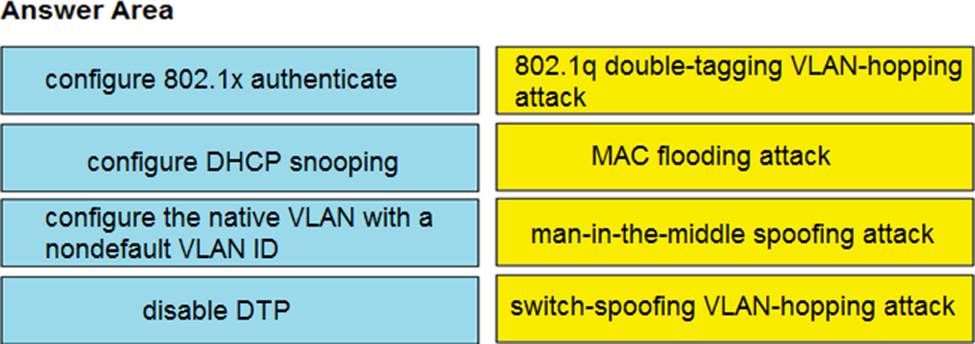

36. Drag and drop the attack-mitigation techniques from the left onto the Types of attack that they mitigate on the right.

37. Which Layer 2 switch function encapsulates packets for different VLANs so that the packets traverse the same port and maintain traffic separation between the VLANs?

VLAN numbering

VLAN DSCP

VLAN tagging

VLAN marking

38. Which action does the router take as rt forwards a packet through the network?

The router replaces the source and desinaoon labels with the sending router uterface label as a source and the next hop router label as a desbnabon

The router encapsulates the source and destination IP addresses with the sending router P address as the source and the neighbor IP address as the destination

The router replaces the original source and destination MAC addresses with the sending router MAC address as the source and neighbor MAC address as the destination

The router encapsulates the original packet and then includes a tag that identifies the source router MAC address and transmit transparently to the destination

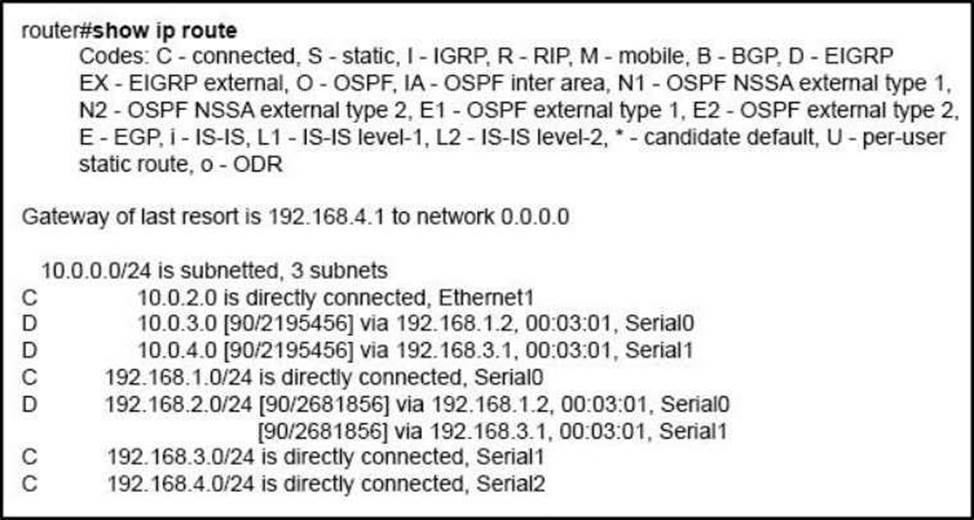

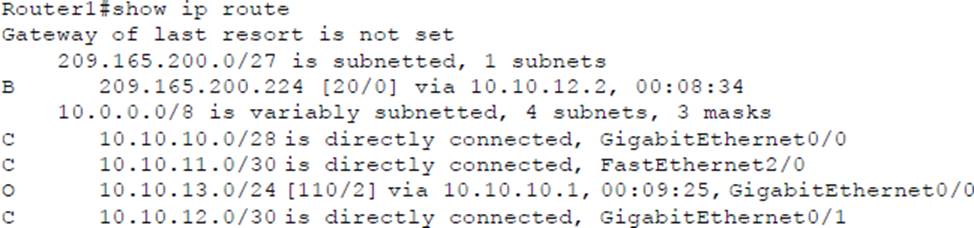

39. Which two pieces of information can you learn by viewing the routing table? (Choose two)

whether an ACL was applied inbound or outbound to an interface

the EIGRP or BGP autonomous system

whether the administrative distance was manually or dynamically configured

Which neighbor adjacencies are established

the length of time that a route has been known

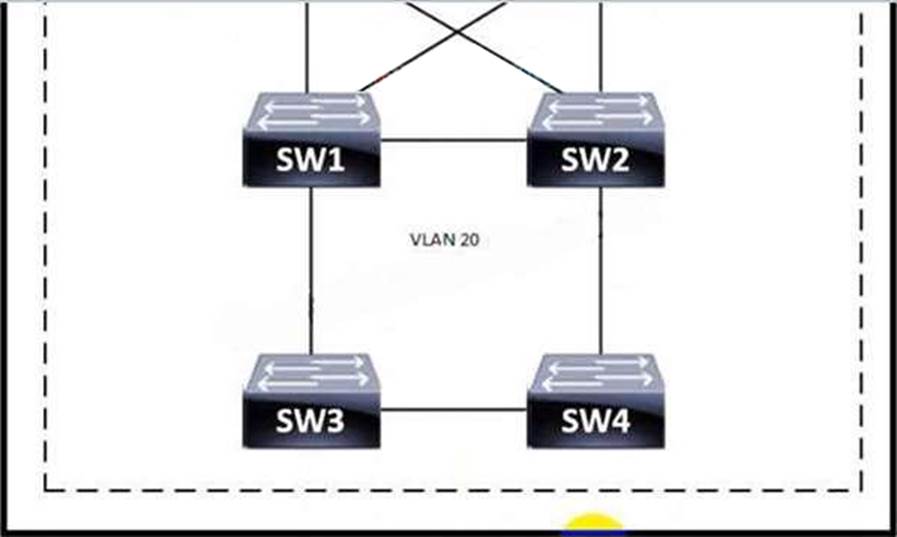

40. Refer to the exhibit.

Which switch becomes the root of a spanning tree for VLAN 20 if all li links are of equal speed?

SW1 = 24596 0018.184e.3c00

SW2 = 28692 004a.14e5.4077

SW3 = 32788 0022.55cf.dd00

SW4 = 64000 0041.454d.407f

Page 5 of 17

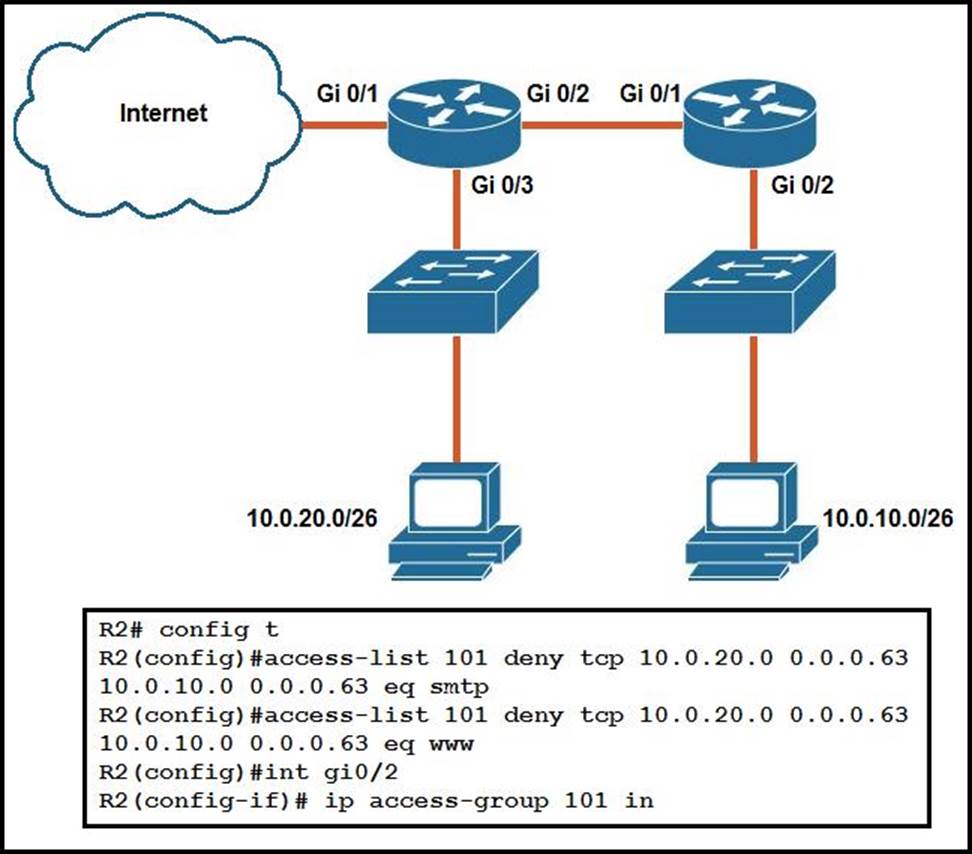

41. Refer to the exhibit.

An extended ACL has been configured and applied to router R2. The configuration started to work as intended.

Which two changes stop outbound traffic on TCP ports 25 and 80 to 10.0.20.0/26 from the 10.0.10.0/26 subnet while still allowing all other traffic? (Choose two)

Add a “permit ip any any” statement to the beginning of ACL 101 for allowed traffic.

Add a “permit ip any any” statement at the end of ACL 101 for allowed traffic.

The source and destination IPs must be swapped in ACL 101.

The ACL must be configured the Gi0/2 interface inbound on R1.

The ACL must be moved to the Gi0/1 interface outbound on R2.

42. Which WLC port connects to a switch to pass normal access-point traffic?

redundancy

console

distribution system

service

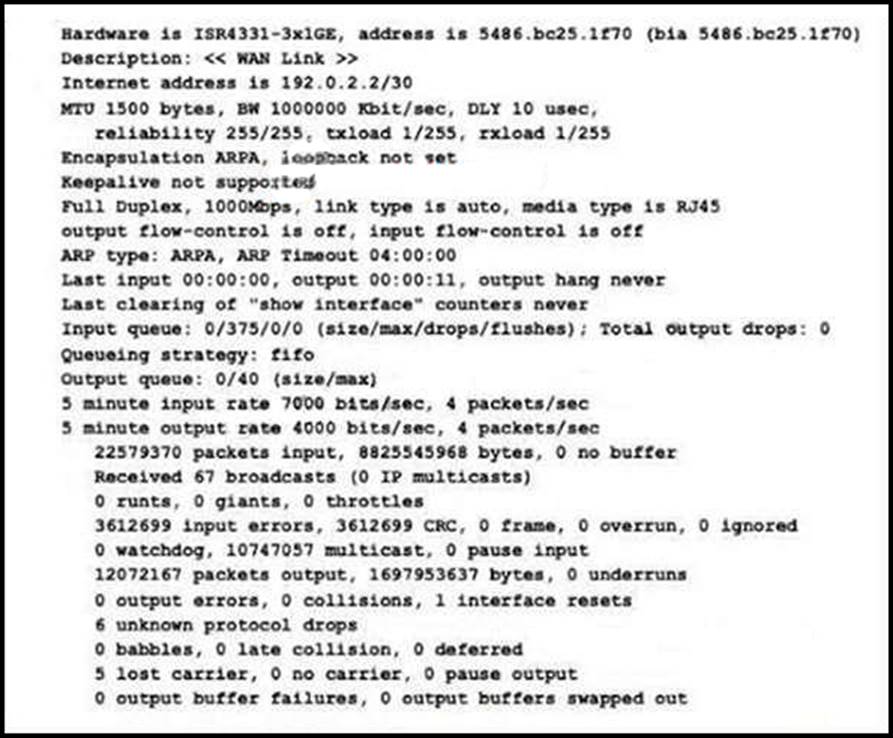

43. Refer to the exhibit.

What is a reason for poor performance on the network interface?

The interface is receiving excessive broadcast traffic.

The cable connection between the two devices is faulty.

The interface is operating at a different speed than the connected device.

The bandwidth setting of the interface is misconfigured

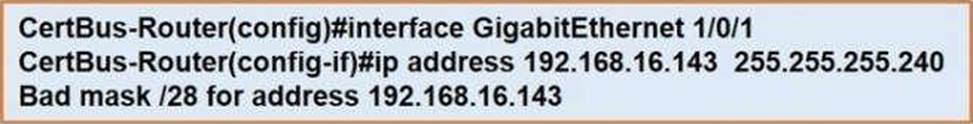

44. Refer to exhibit.

Which statement explains the configuration error message that is received?

It is a broadcast IP address.

The router does not support/28 mask.

It belongs to a private IP address range.

It is a network IP address.

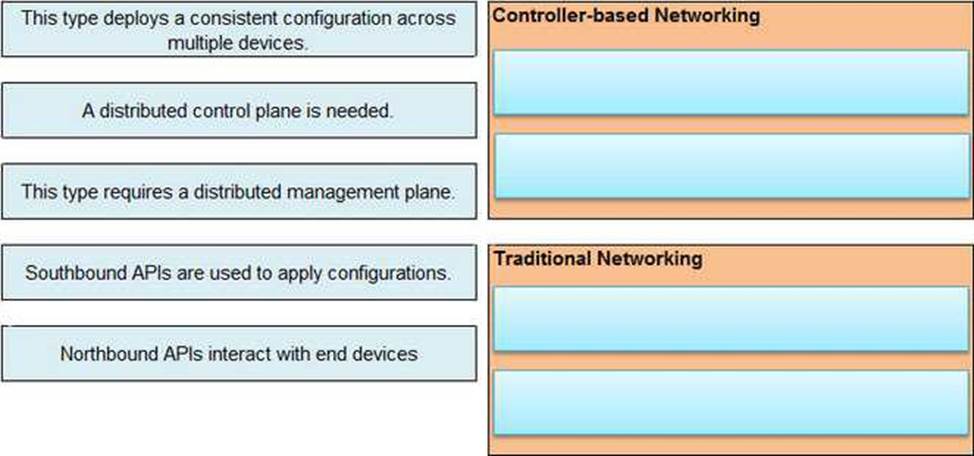

45. Drag and drop to the characteristics of networking from the left onto the correct networking types on the right.

46. Which WPA3 enhancement protects against hackers viewing traffic on the Wi-Fi network?

TKiP encryption

AES encryption

scrambled encryption key

SAE encryption

47. Which two outcomes are predictable behaviors for HSRP? (Choose two)

The two routers share a virtual IP address that is used as the default gateway for devices on the LA

The two routers negotiate one router as the active router and the other as the standby router.

Each router has a different IP address both routers act as the default gateway on the LAN, and traffic is load balanced between them.

The two routers synchronize configurations to provide consistent packet forwarding.

The two routed share the same IP address, and default gateway traffic is load-balanced between them.

48. Refer to the exhibit.

PC1 is trying to ping PC3 for the first time and sends out an ARP to S1.

Which action is taken by S1?

It forwards it out G0/3 only

It is flooded out every port except G0/0.

It drops the frame.

It forwards it out interface G0/2 only.

49. Refer to the exhibit.

R2#show ip route

C 192.68.1.0/26 is directly connected, FastEthernet0/1

Which two prefixes are included in this routing table entry? (Choose two.)

192.168.1.17

192.168.1.61

192.168.1.64

192.168.1.127

192.168.1.254

50. What are two improvements provided by automation for network management in an SDN environment? (Choose two)

Data collection and analysis tools establish a baseline for the network

Artificial intelligence identifies and prevents potential design failures.

Machine learning minimizes the overall error rate when automating troubleshooting processes

New devices are onboarded with minimal effort

Proprietary Cisco APIs leverage multiple network management tools.

Page 6 of 17

51. What are two recommendations for protecting network ports from being exploited when located in an office space outside of an IT closet? (Choose two)

configure static ARP entries

enable the PortFast feature on ports

implement port-based authentication

configure ports to a fixed speed

shut down unused ports

52. What is a practice that protects a network from VLAN hopping attacks?

Enable dynamic ARP inspection

Configure an ACL to prevent traffic from changing VLANs

Change native VLAN to an unused VLAN ID

Implement port security on internet-facing VLANs

53. Which two statements about NTP operations are true? (Choose two.)

NTP uses UDP over I

Cisco routers can act as both NTP authoritative servers and NTP clients.

Cisco routers can act only as NTP servers.

Cisco routers can act only as NTP clients.

NTP uses TCP over I

54. Which command must you enter to guarantee that an HSRP router with higher priority becomes the HSRP primary router after it is reloaded?

standby 10 preempt

standby 10 version 1

standby 10 priority 150

standby 10 version 2

55. Refer to the exhibit.

Which two statements are true about the loopback address that is configured on RouterB? (Choose two.)

It ensures that data will be forwarded by Router

It provides stability for the OSPF process on Router

It specifies that the router ID for RouterB should be 10.0.0.1.

It decreases the metric for routes that are advertised from Router

It indicates that RouterB should be elected the DR for the LA

56. Which three statements are typical characteristics of VLAN arrangements? (Choose three.)

A new switch has no VLANs configured.

Connectivity between VLANs requires a Layer 3 device.

VLANs typically decrease the number of collision domains.

Each VLAN uses a separate address space.

A switch maintains a separate bridging table for each VLA

VLANs cannot span multiple switches.

57. Which IPv6 address block forwards packets to a multicast address rather than a unicast address?

2000::/3

FC00::/7

FE80::/10

FF00::/12

58. How do servers connect to the network in a virtual environment?

wireless to an access point that is physically connected to the network

a cable connected to a physical switch on the network

a virtual switch that links to an access point that is physically connected to the network

a software switch on a hypervisor that is physically connected to the network

59. Which command should you enter to view the error log in an EIGRP for IPv6 environment?

show ipv6 eigrp neighbors

show ipv6 eigrp topology

show ipv6 eigrp traffic

show ipv6 eigrp events

60. What is the effect when loopback interfaces and the configured router ID are absent during the OSPF Process configuration?

No router ID is set, and the OSPF protocol does not run.

The highest up/up physical interface IP address is selected as the router I

The lowest IP address is incremented by 1 and selected as the router I

The router ID 0.0.0.0 is selected and placed in the OSPF process.

Page 7 of 17

61. Refer to the exhibit.

SW1(config-line)#line vty 0 15

SW1(config-line)#no login local

SW1(config-line)#password cisco

SW2(config)#username admin1 password abcd1234

SW2(config)#username admin2 password abcd1234

SW2(config-line)#line vty 0 15

SW2(config-line)#login local

SW3(config)#username admin1 secret abcd1234

SW3(config)#username admin2 secret abcd1234

SW3(config-line)#line vty 0 15

SW3(config-line)#login local

SW4(config)#username admin1 password abcd1234

SW4(config)#username admin2 password abcd1234

SW4(config-line)#line console 0

SW4(config-line)#login local

An administrator configures four switches for local authentication using passwords that are stored in a cryptographic hash. The four switches must also support SSH access for administrators to manage the network infrastructure.

Which switch is configured correctly to meet these requirements?

SW1

SW2

SW3

SW4

62. Which protocol is used for secure remote CLI access?

HTTPS

HTTP

Telnet

SSH

63. A network administrator is troubleshooting the OSPF configuration of routers R1 and R2. The routers cannot establish an adjacency relationship on their common Ethernet link. The graphic shows the output of the show ip ospf interface e0 command for routers R1 and R2.

Based on the information in the graphic, what is the cause of this problem?

The OSPF area is not configured properly.

The cost on R1 should be set higher.

The hello and dead timers are not configured properly.

A backup designated router needs to be added to the network.

The OSPF process ID numbers must match.

64. Which two protocols must be disabled to increase security for management connections to a Wireless LAN Controller? (Choose two)

Telnet

SSH

HTTP

HTTPS

TFTP

65. A network administrator is setting up a new IPv6 network using the 64-bit address 2001 0EB8 00C1

2200:0001 0000 0000 0331/64 To simplify the configuration the administrator has decided to compress the address.

Which IP address must the administrator configure?

ipv6 address 21:EB8:C1:2200:1::331/64

ipv6 address 2001:EB8:C1:22:1::331/64

ipv6 address 2001 :EB8:C 1:2200.1 ::331-64

ipv6 address 2001:EB8:C1:2200:1:0000:331/64

66. Which type of security program is violated when a group of employees enters a building using the ID badge of only one person?

intrusion detection

user awareness

physical access control

network authorization

67. Refer to the exhibit.

A network administrator is configuring an EtherChannel between SW1 and SW2. The SW1 configuration is shown.

What is the correct configuration for SW2?

interface FastEthernet 0/1 channel-group 1 mode active switchport trunk encapsulation dot1q switchport mode trunk ! interface FastEthernet 0/2 channel-group 1 mode active switchport trunk encapsulation dot1q switchport mode trunk

interface FastEthernet 0/1 channel-group 2 mode auto switchport trunk encapsulation dot1q switchport mode trunk ! interface FastEthernet 0/2 channel-group 2 mode auto switchport trunk encapsulation dot1q switchport mode trunk

interface FastEthernet 0/1 channel-group 1 mode desirable switchport trunk encapsulation dot1q switchport mode trunk ! interface FastEthernet 0/2 channel-group 1 mode desirable switchport trunk encapsulation dot1q switchport mode trunk

interface FastEthernet 0/1 channel-group 1 mode passive switchport trunk encapsulation dot1q switchport mode trunk ! interface FastEthernet 0/2 channel-group 1 mode passive switchport trunk encapsulation dot1q switchport mode trunk

68. R1 has learned route 192.168.12.0/24 via IS- IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?

IS-IS

RIP

Internal EIGRP

OSPF

69. What is a function of TFTP in network operations?

transfers a backup configuration file from a server to a switch using a username and password

transfers files between file systems on a router

transfers a configuration files from a server to a router on a congested link

transfers IOS images from a server to a router for firmware upgrades

70. Which Cisco IOS command will indicate that interface GigabitEthernet 0/0 is configured via DHCP?

show ip interface GigabitEthernet 0/0 dhcp

show interface GigabitEthernet 0/0

show ip interface dhcp

show ip interface GigabitEthernet 0/0

show ip interface GigabitEthernet 0/0 brief

Page 8 of 17

71. Drag the IPv6 DNS record types from the left onto the description on the right.

72. Refer to the exhibit.

Which two commands were used to create port channel 10? (Choose two )

interface range g0/0-1 channel-group 10 mode active

interface range g0/0-1 channel-group 10 mode desirable

interface range g0/0-1 channel-group 10 mode passive

interface range g0/0-1 channel-group 10 mode auto

interface range g0/0-1 channel-group 10 mode on

73. An engineer must configure R1 for a new user account. The account must meet these requirements:

It must be configured in the local database.

The username is engineer.

- It must use the strongest password configurable.

Which command must the engineer configure on the router?

R1 (config)# username engineer2 algorithm-type scrypt secret test2021

R1(config)# username engineer2 secret 5 .password S1$b1Ju$kZbBS1Pyh4QzwXyZ

R1(config)# username engineer2 privilege 1 password 7 test2021

R1(config)# username englneer2 secret 4 S1Sb1Ju$kZbBS1Pyh4QzwXyZ

74. A network engineer must configure two new subnets using the address block 10 70 128 0/19 to meet these requirements:

- The first subnet must support 24 hosts

- The second subnet must support 472 hosts

- Both subnets must use the longest subnet mask possible from the address block.

Which two configurations must be used to configure the new subnets and meet a requirement to use the first available address in each subnet for the router interfaces? (Choose two)

interface vlan 1234 ip address 10.70.159.1 255.255.254.0

interface vlan 1148 ip address 10.70.148.1 255.255.254.0

interface vlan 4722 ip address 10.70.133.17 255.255.255.192

interface vlan 3002 ip address 10.70.147.17 255.255.255.224

interface vlan 155 ip address 10.70.155.65 255.255.255.224

75. A network engineer is Installing an IPv6-only capable device. The client has requested that the device IP address be reachable only from the internal network.

Which type of IPv6 address must the engineer assign?

unique local address

link-local address

aggregatable global address

IPv4-compatible IPv6 address

76. Which resource is able to be shared among virtual machines deployed on the same physical server?

disk

applications

VM configuration file

operating system

77. Refer to the exhibit.

Which plan must be Implemented to ensure optimal QoS marking practices on this network?

As traffic traverses MLS1 remark the traffic, but trust all markings at the access layer.

Trust the IP phone markings on SW1 and mark traffic entering SW2 at SW2.

Remark traffic as it traverses R1 and trust all markings at the access layer.

As traffic enters from the access layer on SW1 and SW2. trust all traffic markings.

78. An engineer must configure the IPv6 address 2001:0db8:0000:0000:0700:0003:400F:572B on the serial0/0 interface of the HQ router and wants to compress it for easier configuration.

Which command must be issued on the router interface?

ipv6 address 2001:db8::700:3:400F:572B

ipv6 address 2001:db8:0::700:3:4F:572B

ipv6 address 2001:Odb8::7:3:4F:572B

ipv6 address 2001::db8:0000::700:3:400F:572B

79. What are two functions of an SDN controller? (Choose two)

Layer 2 forwarding

coordinating VTNs

tracking hosts

managing the topology

protecting against DDoS attacks

80. Refer to the exhibit.

On R1 which routing protocol is in use on the route to 192.168.10.1?

RIP

OSPF

IGRP

EIGRP

Page 9 of 17

81. Drag and drop the DNS lookup components from the left onto the functions on the right.

82. Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.

83. Which command is used to display the collection of OSPF link states?

show ip ospf link-state

show ip ospf lsa database

show ip ospf neighbors

show ip ospf database

84. Which value is the unique identifier that an access point uses to establish and maintain wireless connectivity to wireless network devices?

VLANID

SSID

RFID

WLANID

85. In QoS, which prioritization method is appropriate for interactive voice and video?

expedited forwarding

traffic policing

round-robin scheduling

low-latency queuing

86. How can the Cisco Discovery Protocol be used?

to allow a switch to discover the devices that are connected to its ports

to determine the hardware platform of the device

to determine the IP addresses of connected Cisco devices

all of the above

87. Drag and drop the WLAN components from the left onto the correct descriptions on the right.

88. Refer to the exhibit.

Which command must be executed for Gi1.1 on SW1 to become a trunk port if Gi1/1 on SW2 is configured in desirable or trunk mode?

switchport mode trunk

switchport mode dot1-tunnel

switchport mode dynamic auto

switchport mode dynamic desirable

89. What is a function of a Layer 3 switch?

move frames between endpoints limited to IP addresses

transmit broadcast traffic when operating in Layer 3 mode exclusively

forward Ethernet frames between VLANs using only MAC addresses

flood broadcast traffic within a VLAN

90. What are network endpoints?

act as routers to connect a user to the service prowler network

a threat to the network if they are compromised

support inter-VLAN connectivity

enforce policies for campus-wide traffic going to the internet

Page 10 of 17

91. Which command on a port enters the forwarding state immediately when a PC is connected to it?

switch(config)#spanning-tree portfast default

switch(config)#spanning-tree portfast bpduguard default

switch(config-if)#spanning-tree portfast trunk

switch(config-if)#no spanning-tree portfast

92. An engineer observes high usage on the 2.4GHz channels and lower usage on the 5GHz channels.

What must be configured to allow clients to preferentially use 5GHz access points?

Re- Anchor Roamed Clients

11ac MU-MIMO

OEAP Split Tunnel

Client Band Select

93. A user configured OSPF in a single area between two routers A serial interface connecting R1 and R2 is running encapsulation PPP.

By default which OSPF network type is seen on this interface when the user types show ip ospf interface on R1 or R2?

port-to-multipoint

broadcast

point-to-point

non-broadcast

94. Drag and drop the functions of DHCP from the left onto any of the positions on the right (Not all functions are used)

95. A manager asks a network engineer to advise which cloud service models are used so employees do not have to waste their time installing, managing, and updating software which is only used occasionally.

Which cloud service model does the engineer recommend?

infrastructure-as-a-service

platform-as-a-service

business process as service to support different types of service

software-as-a-service

96. Refer to the exhibit.

Given the output for this command, if the router ID has not been manually set, what router ID will OSPF use for this router?

10.1.1.2

10.154.154.1

172.16.5.1

192.168.5.3

97. Refer to the exhibit.

Which two commands must be configured on router R1 to enable the router to accept secure remote-access connections? (Choose two)

transport input telnet

crypto key generate rsa

ip ssh pubkey-chain

username cisco password 0 Cisco

98. Refer to the exhibit.

Which VLAN ID is associated with the default VLAN in the given environment?

VLAN 1

VLAN 5

VLAN 10

VLAN 20

99. Refer to the exhibit.

Which switch in this configuration becomes the root bridge?

SW1

SW2

SW3

SW4

100. What prevents a workstation from receiving a DHCP address?

DTP

STP

VTP

802.10

Page 11 of 17

101. Refer to the exhibit.

Which outcome is expected when PC_A sends data to PC_B?

The switch rewrites the source and destination MAC addresses with its own

The source and destination MAC addresses remain the same

The source MAC address is changed

The destination MAC address is replaced with ffff.ffff.ffff

102. Refer to the exhibit.

How will switch SW2 handle traffic from VLAN 10 on SW1?

It sends the traffic to VLAN 10.

It sends the traffic to VLAN 100.

It drops the traffic.

It sends the traffic to VLAN 1.

103. Which CRUD operation modifies an existing table or view?

read

create

replace

update

104. Which communication interaction takes place when a southbound API Is used?

between the SDN controller and PCs on the network

between the SON controller and switches and routers on the network

between the SON controller and services and applications on the network

between network applications and switches and routers on the network

105. What is the function of a controller in controller-based networking?

It serves as the centralized management point of an SDN architecture.

It centralizes the data plane for the network.

It is the card on a core router that maintains all routing decisions for a campus.

It is a pair of core routers that maintain all routing decisions for a campus

106. An engineer must configure Interswitch VLAN communication between a Cisco switch and a third-party switch.

Which action should be taken?

configure IEEE 802.1p

configure IEEE 802.1q

configure ISL

configure DSCP

107. Drag and drop the IPv4 network subnets from the left onto the correct usable host ranges on the right.

108. Refer to the exhibit.

An engineer is tasked with verifying network configuration parameters on a client workstation to report back to the team lead.

Drag and drop the node identifiers from the left onto the network parameters on the right.

109. Drag and drop the statement about networking from the left into the Corresponding networking types on the right. Not all statements are used.

110. Refer to the exhibit.

SW1#show run int gig 0/1

interface GigabitEthernet0/1

switchport access vlan 11

switchport trunk allowed vlan 1-10

switchport trunk encapsulation dot1q

switchport trunk native vlan 5

switchport mode trunk

speed 1000

duplex full

Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?

The frame is processed in VLAN 5.

The frame is processed in VLAN 11

The frame is processed in VLAN 1

The frame is dropped

Page 12 of 17

111. What are two enhancements that OSPFv3 supports over OSPFV2? (Choose two.)

It requires the use of AR

It can support multiple IPv6 subnets on a single link.

It supports up to 2 instances of OSPFv3 over a common link.

It routes over links rather than over networks.

112. Refer to the exhibit.

access-list 100 deny ip 192.168.1.0 0.0.0.255 host 10.1.1.5

access-list 100 permit ip any any

An administrator configures the following ACL in order to prevent devices on the 192.168.1.0 subnet from accessing the server at 10.1.1.5:

Where should the administrator place this ACL for the most efficient use of network resources?

inbound on router A Fa0/0

outbound on router B Fa0/0

outbound on router A Fa0/1

inbound on router B Fa0/1

113. Refer to the exhibit.

The DHCP server and clients are connected to the same switch.

What is the next step to complete the DHCP configuration to allow clients on VLAN 1 to receive addresses from the DHCP server?

Configure the ip dhcp snooping trust command on the interlace that is connected to the DHCP client.

Configure the ip dhcp relay information option command on the interface that is connected to the DHCP client.

Configure the ip dhcp snooping trust command on the interface that is connected to the DHCP server.

Configure the Ip dhcp relay information option command on the interface that is connected to the DHCP server.

114. Which NAT term is defined as a group of addresses available for NAT use?

NAT pool

dynamic NAT

static NAT

one-way NAT

115. How does STP prevent forwarding loops at OSI Layer 2?

TTL

MAC address forwarding

Collision avoidance

Port blocking

116. What is a function of a Next-Generation IPS?

makes forwarding decisions based on learned MAC addresses

serves as a controller within a controller-based network

integrates with a RADIUS server to enforce Layer 2 device authentication rules

correlates user activity with network events

117. Drag and drop the Cisco Wireless LAN Controller security settings from the left onto the correct security mechanism categories on the right

118. What is a characteristic of private IPv4 addressing?

traverse the Internet when an outbound ACL is applied

issued by IANA in conjunction with an autonomous system number

composed of up to 65.536 available addresses

used without tracking or registration

119. In Which way does a spine-and-leaf architecture allow for scalability in a network when additional access ports are required?

A spine switch and a leaf switch can be added with redundant connections between them.

A spine switch can be added with at least 40 GB uplinks.

A leaf switch can be added with a single connection to a core spine switch.

A leaf switch can be added with connections to every spine switch.

120. Refer to the exhibit.

The MAC address table is shown in its entirety. The Ethernet frame that is shown arrives at the switch.

What two operations will the switch perform when it receives this frame? (Choose two.)

The switch will not forward a frame with this destination MAC address.

The frame will be forwarded out of all the ports on the switch.

The MAC address of ffff.ffff.ffff will be added to the MAC address table.

The frame will be forwarded out of all the active switch ports except for port fa0/0.

The MAC address of 0000.00aa.aaaa will be added to the MAC Address Table.

The frame will be forwarded out of fa0/0 and fa0/1 only.

Page 13 of 17

121. Which two primary drivers support the need for network automation? (Choose two.)

Eliminating training needs

Increasing reliance on self-diagnostic and self-healing

Policy-derived provisioning of resources

Providing a ship entry point for resource provisioning

Reducing hardware footprint

122. Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?

configure a stateful DHCPv6 server on the network

enable SLAAC on an interface

disable the EUI-64 bit process

explicitly assign a link-local address

123. Which goal is achieved by the implementation of private IPv4 addressing on a network?

allows servers and workstations to communicate across public network boundaries

provides a reduction in size of the forwarding table on network routers

allows communication across the Internet to other private networks

provides an added level of protection against Internet exposure

124. Which global command encrypt all passwords in the running configuration?

password-encrypt

enable password-encryption

enable secret

service password-encryption

125. Refer to the exhibit.

Router R1 currently is configured to use R3 as the primary route to the Internet, and the route uses the default administrative distance settings. A network engineer must configure R1 so that it uses R2 as a backup, but only if R3 goes down.

Which command must the engineer configure on R1 so that it correctly uses R2 as a backup route, without changing the administrative distance configuration on the link to R3?

ip route 0.0.0.0 0.0.0.0 g0/1 1

ip route 0.0.0.0 0.0.0.0 209.165.201.5 10

ip route 0.0.0.0 0.0.0.0 209.165.200.226 1

ip route 0,0.0.0 0.0.0.0 g0/1 6

126. An engineer is installing a new wireless printer with a static IP address on the Wi-Fi network.

Which feature must be enabled and configured to prevent connection issues with the printer?

passive client

client exclusion

DHCP address assignment

static IP tunneling

127. Which type of information resides on a DHCP server?

a list of the available IP addresses in a pool

a list of public IP addresses and their corresponding names

usernames and passwords for the end users in a domain

a list of statically assigned MAC addresses

128. Which network action occurs within the data plane?

compare the destination IP address to the IP routing table.

run routing protocols (OSPF, EIGRP, RIP, BGP)

make a configuration change from an incoming NETCONF RPC

reply to an incoming ICMP echo request

129. Which MAC address is recognized as a VRRP virtual address?

0000.5E00.010a

0005.3711.0975

0000.0C07.AC99

0007.C070/AB01

130. Refer to Exhibit.

How does SW2 interact with other switches in this VTP domain?

It processes VTP updates from any VTP clients on the network on its access ports.

It receives updates from all VTP servers and forwards all locally configured VLANs out all trunk ports.

It forwards only the VTP advertisements that it receives on its trunk ports.

It transmits and processes VTP updates from any VTP Clients on the network on its trunk ports.

Page 14 of 17

131. Which IPv6 address type provides communication between subnets and cannot route on the Internet?

global unicast

unique local

link-local

multicast

132. After installing a new Cisco ISE server, which task must the engineer perform on the Cisco WLC to connect wireless clients on a specific VLAN based on their credentials?

Enable the allow AAA Override

Enable the Even: Driven RR

Disable the LAG Mode or Next Reboot.

Enable the Authorized MIC APs against auth-list or AA

133. Which type of network attack overwhelms the target server by sending multiple packets to a port until the half-open TCP resources of the target are exhausted?

SYN flood

reflection

teardrop

amplification

134. What causes a port to be placed in the err-disabled state?

latency

port security violation

shutdown command issued on the port

nothing plugged into the port

135. Drag and drop the IPv6 address type characteristics from the left to the right

136. Which state does the switch port move to when PortFast is enabled?

learning

forwarding

blocking

listening

137. Refer to the exhibit.

A company is configuring a failover plan and must implement the default routes in such a way that a floating static route will assume traffic forwarding when the primary link goes down.

Which primary route configuration must be used?

ip route 0.0.0.0 0.0.0.0 192.168.0.2 GigabitEthernet1/0

ip route 0.0.0.0 0.0.0.0 192.168.0.2 tracked

ip route 0.0.0.0 0.0.0.0 192.168.0.2 floating

ip route 0.0.0.0 0.0.0.0 192.168.0.2

138. Which statement about Link Aggregation when implemented on a Cisco Wireless LAN Controller is true?

To pass client traffic two or more ports must be configured.

The EtherChannel must be configured in “mode active”.

When enabled, the WLC bandwidth drops to 500 Mbps.

One functional physical port is needed to pass client traffic.

139. Refer to the exhibit.

How will the router handle a packet destined for 192.0.2.156?

The router will forward the packet via either Serial0 or Serial1.

The router will return the packet to its source.

The router will forward the packet via Serial2.

The router will drop the packet.

140. Which technology can prevent client devices from arbitrarily connecting to the network without state remediation?

802.1x

IP Source Guard

MAC Authentication Bypass

802.11n

Page 15 of 17

141. Which condition must be met before an NMS handles an SNMP trap from an agent?

The NMS software must be loaded with the MIB associated with the trap.

The NMS must be configured on the same router as the SNMP agent

The NMS must receive a trap and an inform message from the SNMP agent within a configured interval

The NMS must receive the same trap from two different SNMP agents to verify that it is reliable.

142. What occurs to frames during the process of frame flooding?

Frames are sent to all ports, including those that are assigned to other VLANs.

Frames are sent to every port on the switch that has a matching entry in MAC address table.

Frames are sent to every port on the switch in the same VLAN except from the originating port.

Frames are sent to every port on the switch in the same VLA

143. An engineer is configuring data and voice services to pass through the same port. The designated switch interface fastethernet0/1 must transmit packets using the same priority for data when they are received from the access port of the IP phone.

Which configuration must be used?

interface fastethernet0/1 switchport priority extend cos 7

interface fastethernet0/1 switchport voice vlan untagged

interface fastethernet0/1 switchport voice vlan dot1p

interface fastethernet0/1 switchport priority extend trust

144. Which command prevents passwords from being stored in the configuration as plaintext on a router or

switch?

enable secret

service password-encryption

username Cisco password encrypt

enable password

145. What describes the operation of virtual machines?

Virtual machines are responsible for managing and allocating host hardware resources

In a virtual machine environment, physical servers must run one operating system at a time.

Virtual machines are the physical hardware that support a virtual environment.

Virtual machines are operating system instances that are decoupled from server hardware

146. Which command should you enter to configure a device as an NTP sever?

ntp sever

ntp peer

ntp authenticate

ntp master

147. A network engineer must configure the router R1 GigabitEthernet1/1 interface to connect to the router R2 GigabitEthernet1/1 interface. For the configuration to be applied the engineer must compress the address 2001:0db8:0000:0000:0500:000a:400F:583B.

Which command must be issued on the interface?

ipv6 address 2001:0db8::5: a: 4F 583B

ipv6 address 2001:db8::500:a:400F:583B

ipv6 address 2001 db8:0::500:a:4F:583B

ipv6 address 2001::db8:0000::500:a:400F:583B

148. An engineer must configure a WLAN using the strongest encryption type for WPA2-PSK.

Which cipher fulfills the configuration requirement?

WEP

RC4

AES

TKIP

149. What are two characteristics of the distribution layer in a three-tier network architecture? (Choose two.)

serves as the network aggregation point

provides a boundary between Layer 2 and Layer 3 communications

designed to meet continuous, redundant uptime requirements

is the backbone for the network topology

physical connection point for a LAN printer

150. What is the purpose of a southbound API in a control based networking architecture?

Facilities communication between the controller and the applications

Facilities communication between the controller and the networking hardware

allows application developers to interact with the network

integrates a controller with other automation and orchestration tools.

Page 16 of 17

151. Which two VLAN IDs indicate a default VLAN? (Choose two.)

1005

1006

4096

152. Refer to the exhibit.

Which rule does the DHCP server use when there is an IP address conflict?

The address is removed from the pool until the conflict is resolved.

The address remains in the pool until the conflict is resolved.

Only the IP detected by Gratuitous ARP is removed from the pool.

Only the IP detected by Ping is removed from the pool.

The IP will be shown, even after the conflict is resolved.

153. Refer to the exhibit.

A network administrator assumes a task to complete the connectivity between PC A and the File Server Switch A and Switch B have been partially configured with VLANs 10, 11, 12, and 13.

What is the next step in the configuration?

Add PDA to VLAN 10 and the File Server to VLAN 11 for VLAN segmentation

Add VLAN 13 to the trunk links on Switch A and Switch B for VLAN propagation

Add a router on a stick between Switch A and Switch B allowing for Inter VLAN routing

Add PC A to the same subnet as the File Server allowing for intra-VLAN communication

154. An engineer is configuring an encrypted password for the enable command on a router where the local user database has already been configured.

Drag and drop the configuration commands from the left into the correct sequence on the right (Not all commands are used)

155. In software-defined architecture, which place handles switching for traffic through a Cisco router?

Control

Management

Data

application

156. Which command enables a router to become a DHCP client?

ip address dhcp

ip helper-address

ip dhcp pool

ip dhcp client

157. Which two QoS tools provides congestion management? (Choose two)

CAR

CBWFQ

PBR

FRTS

158. Refer to me exhibit.

Which action is taken by the router when a packet is sourced from 10.10.10.2 and destined for 10.10.10.16?

It uses a route that is similar to the destination address

It discards the packets.

It floods packets to all learned next hops.

It Queues the packets waiting for the route to be learned.

159. If a switch port receives a new frame while it is actively transmitting a previous frame, how does it process the frames?

The new frame is delivered first, the previous frame is dropped, and a retransmission request is sent.

The previous frame is delivered, the new frame is dropped, and a retransmission request is sent.

The new frame is placed in a queue for transmission after the previous frame.

The two frames are processed and delivered at the same time.

160. Refer to the exhibit.

Router R1 Fa0/0 cannot ping router R3 Fa0/1.

Which action must be taken in router R1 to help resolve the configuration issue?

set the default network as 20.20.20.0/24

set the default gateway as 20.20.20.2

configure a static route with Fa0/1 as the egress interface to reach the 20.20.20.0/24 network

configure a static route with 10.10.10.2 as the next hop to reach the 20.20.20.0/24 network

Page 17 of 17

161. Refer to the exhibit.

An administrator must turn off the Cisco Discovery Protocol on the port configured with address last usable address in the 10.0.0.0/30 subnet.

Which command set meets the requirement?

interface gi0/1 no cdp enable

interface gi0/1 clear cdp table

interface gi0/0 no cdp advertise-v2

interface gi0/0 no cdp run

162. Which type of address is the public IP address of a NAT device?

outside global

outsdwde local

inside global

insride local

outside public

inside public

163. Refer to the exhibit.

What does router R1 use as its OSPF router-ID?

10.10.1.10

10.10.10.20

172.16.15.10

192.168.0.1

164. Refer to the exhibit.

An engineer booted a new switch and applied this configuration via the console port.

Which additional configuration must be applied to allow administrators to authenticate directly to enable privilege mode via Telnet using a local username and password?

R1(config)#username admin R1(config-if)#line vty 0 4 R1(config-line)#password p@ss1234

R1(config)#username admin R1(config-if)#line vty 0 4 R1(config-line)#password p@ss1234 R1(config-line)#transport input telnet

R1(config)#username admin secret p@ss1234 R1(config-if)#line vty 0 4 R1(config-line)#login local R1(config)#enable secret p@ss1234

R1(config)#username admin privilege 15 secret p@ss1234 R1(config-if)#line vty 0 4 R1(config-line)#login local

165. The service password-encryption command is entered on a router.

What is the effect of this configuration?

restricts unauthorized users from viewing clear-text passwords in the running configuration

prevents network administrators from configuring clear-text passwords

protects the VLAN database from unauthorized PC connections on the switch

encrypts the password exchange when a VPN tunnel is established

166. How do TCP and UDP differ in the way they provide reliability for delivery of packets?

TCP is a connectionless protocol that does not provide reliable delivery of data, UDP is a connection-oriented protocol that uses sequencing to provide reliable delivery.

TCP does not guarantee delivery or error checking to ensure that there is no corruption of data UDP provides message acknowledgement and retransmits data if lost.

TCP provides flow control to avoid overwhelming a receiver by sending too many packets at once, UDP sends packets to the receiver in a continuous stream without checking for sequencing

TCP uses windowing to deliver packets reliably; UDP provides reliable message transfer between hosts by establishing a three-way handshake

167. Drag and drop the DHCP snooping terms from the left onto the descriptions on the right.

168. Which configuration management mechanism uses TCP port 22 by default when communicating with managed nodes?

Ansible

Python

Puppet

Chef

169. Refer to the exhibit.

Which two configurations must the engineer apply on this network so that R1 becomes the DR? (Choose two.)

R1(config)#router ospf 1 R1(config-router)#router-id 192.168.100.1

R1(config)#interface fastethernet 0/0 R1(config-if)#ip ospf priority 200

R3(config)#interface fastethernet 0/0 R3(config-if)#ip ospf priority 0

R1(config)#interface fastethernet 0/0 R1(config-if)#ip ospf priority 0

R3(config)#interface fastethernet 0/0 R3(config-if)#ip ospf priority 200

170. Refer to the exhibit.

The ntp server 192.168.0.3 command has been configured on router 1 to make it an NTP client of router 2.

Which command must be configured on router 2 so that it operates in server-only mode and relies only on its internal clock?

Router2(config)#ntp passive

Router2(config)#ntp server 172.17.0.1

Router2(config)#ntp master 4

Router2(config)#ntp server 192.168.0.2

2022 Update 200-301 CCNA Dumps To Ensure Your Success

2022 Update 200-301 CCNA Dumps To Ensure Your Success

Share this post

Author

Leave a Reply Cancel reply

Related Posts
