Good news, we received lots of successful feedback about 300-410 ENARSI exam from our candidates, they all pass this Cisco 300-410 exam with the update questions. If you’re looking for help with 300-410 exam preparation and a guarantee of passing your exam, you’ve come to the right place. The new update 300-410 dumps contains real questions and answers to help you pass your CCNP Enterprise certification 300-410 ENARSI exam successfully.

Try these 300-410 practice exam to test yourself.

Page 1 of 7

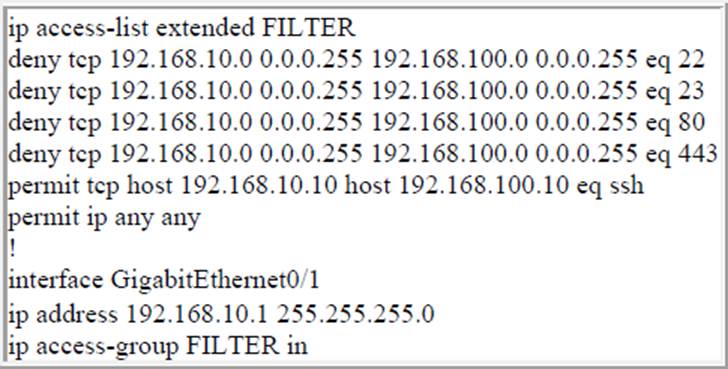

1. Refer to the exhibit.

The ACL is placed on the inbound GigabitEthernet 0/1 interface of the router. Host 192.168.10.10 cannot SSH to host 192.168.100.1 even though the flow is permitted.

Which action resolves the issue without opening full access to this router?

Temporarily move the permit ip any any line to the beginning of the ACL to see if it the flow works

Run the show access-list FILTER command to view if the SSH entry has any hit statistics associated with it

Move the SSH entry to the beginning of the ACL

Temporarily remove the ACL from the interface to see if the flow works

2. A network administrator is troubleshooting a high utilization issue on the route processor of a router that was reported by NMS. The administrator logged into the router to check the control plane policing and observed that the BGP process is dropping a high number of routing packets and causing thousands of routes to recalculate frequently.

Which solution resolves this issue?

Shape the cir for BGP, conform-action transmit, and exceed action transmit.

Shape the pir for BGP, conform-action set-prec-transmit, and exceed action set-frde-transmit.

Police the cir for BGP, conform-action transmit, and exceed action transmit.

Police the pir for BGP, conform-action set-prec-transmit, and exceed action set-clp-transmit.

3. Refer to the exhibit.

A router receiving BGP routing updates from multiple neighbors for routers in AS 690.

What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than10.222.10.1?

The local preference value in another neighbor statement is higher than 250.

The local preference value should be set to the same value as the weight in the route map.

The route map is applied in the wrong direction.

The weight value in another statement is higher than 200.

4. An engineer creates a Cisco DNA Center cluster with three nodes. but all the services are running on one host node.

Which action resolves this issue?

Restore the link on the switch interface that is connected to a cluster link on the Cisco DNA Center.

Click the master host node with all the services and select services to be moved to other hosts.

Enable service distribution from the Systems 360 page.

Click system updates, and upgrade to the latest version of Cisco DNA Center.

5. Which mechanism must be chosen to optimize the reconvergence time for OSPF at company location XXXXX that is less CPU-intensive than reducing the hello and dead timers?

Dead Peer Detection keepalives

BFD

OSPF demand circuit

SSO

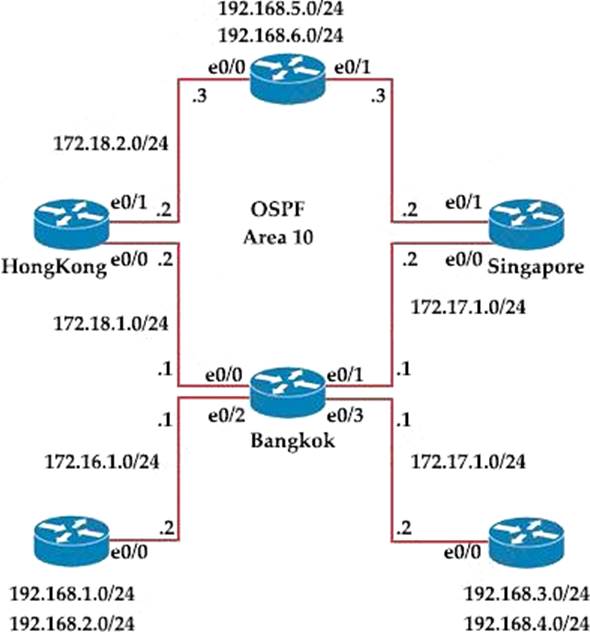

6. Refer to the exhibit.

Bangkok is using ECMP to reach to the 192 168.5.0/24 network. The administrator must configure Bangkok in such a way that Telnet traffic from 192 168 3 0/24 and 192.168.4.0/24 networks uses the HongKong router as the preferred route.

Which set of configurations accomplishes this task?

access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255 ! route-map PBR1 permit 10 match ip address 101 set ip next-hop 172.18.1.2 interface Ethernet0/3 ip policy route-map PBR1

access-list 101 permit tcp 192.168.3.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23 access-list 101 permit tcp 192.168.4.0 0.0.0.255 192.168.5.0 0.0.0.255 eq 23 ! route-map PBR1 permit 10 match ip address 101 set ip next-hop 172.18.1.2 interface Ethernet0/1 ip policy route-map PBR1

7. Which is statement about IPv6 inspection is true?

It teams and secures bindings for stateless autoconfiguration addresses in Layer 3 neighbor tables

It learns and secures bindings for stateful autoconfiguration addresses in Layer 3 neighbor tables

It teams and secures bindings for stateful autoconfiguration addresses in Layer 2 neighbor tables

It team and secures binding for stateless autoconfiguration addresses in Layer 2 neighbor tables.

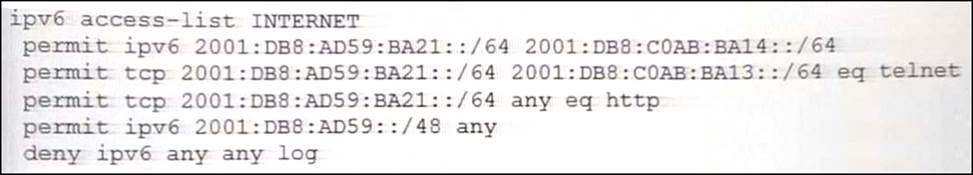

8. Refer to the exhibit.

While monitoring VTY access to a router an engineer notices that the router does not have any fiter and anyone can access the router with usemame and password even though an ACL is configured.

Which command resolves this issue?

ipv6 traffic-filter INTERNET in

access-class INTERNET in

ipv6 access-class INTERNET in

ip access-group INTERNET in

9. An engineer configured a Cisco router to send reliable and encrypted notifications for any events to the management server. It was noticed that the notification messages are reliable but not encrypted.

Which action resolves the issue?

Configure all devices for SNMPv3 traps with auth.

Configure all devices for SNMPv3 traps with priv.

Configure all devices for SNMPv3 informs with auth.

Configure all devices for SNMPv3 informs with priv.

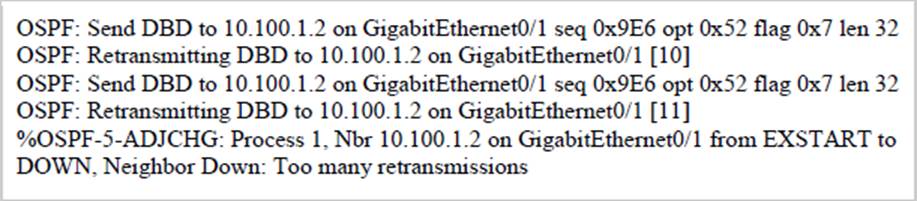

10. Refer to the exhibit.

The OSPF neighbor relationship is not coming up.

What must be configured to restore OSPF neighbor adjacency?

OSPF on the remote router

matching hello timers

matching mtu values

use router ID

Page 2 of 7

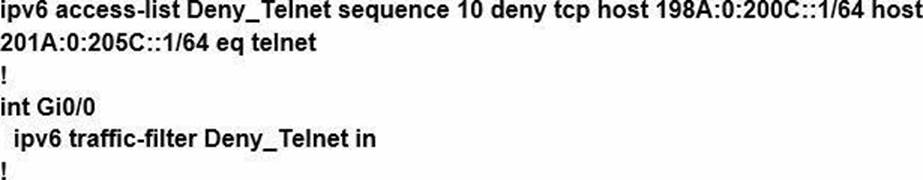

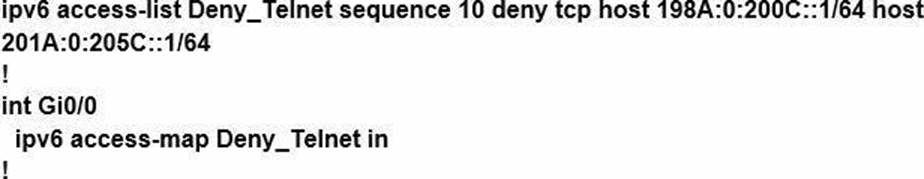

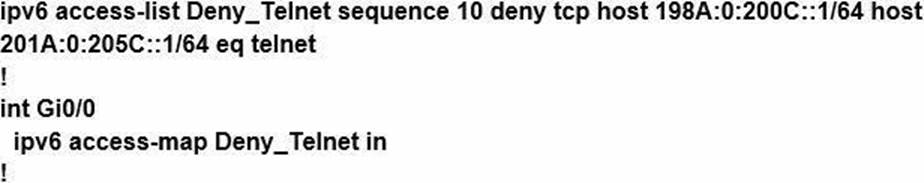

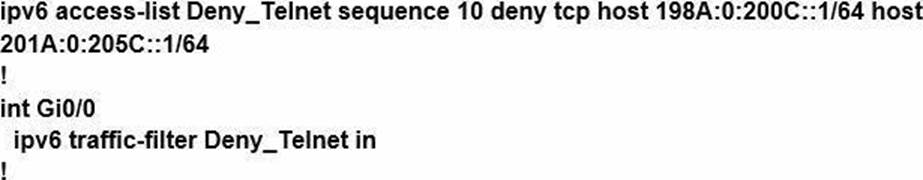

11. Refer to the exhibit.

Which configuration denies Telnet traffic to router 2 from 198A:0:200C::1/64?

A)

Option A

Option B

Option C

Option D

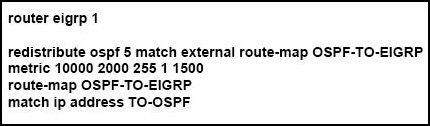

12. Refer to the exhibit.

Which routes from OSPF process 5 are redistributed into EIGRP?

E1 and E2 subnets matching access list TO-OSPF

E1 and E2 subnets matching prefix list TO-OSPF

only E2 subnets matching access list TO-OSPF

only E1 subnets matching prefix listTO-OS1

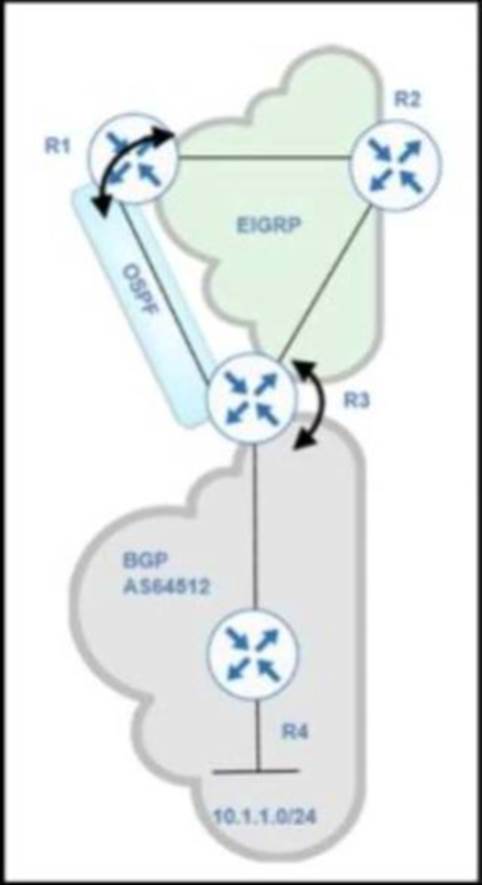

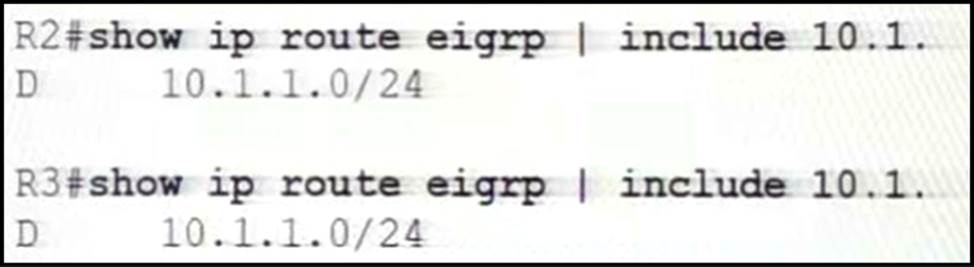

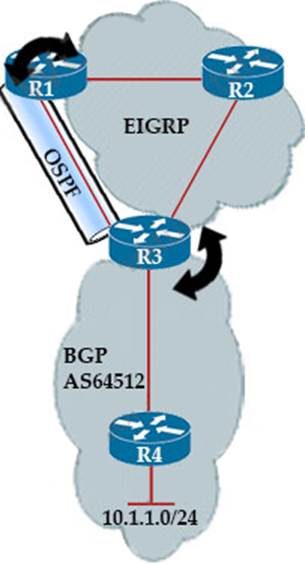

13. Refer to the exhibit.

BGP and EIGRP are mutually redistributed on R3, and EIGRP and OSPF are mutually redistributed on R1. Users report packet loss and interruption of service to applications hosted on the 10.1.1.0/24 prefix. An engineer tested the link from R3 to R4 with no packet loss present but has noticed frequent routing changes on R3 when running the debug ip route command.

Which action stabilizes the service?

Reduce frequent OSPF SPF calculations on R3 that cause a high CPU and packet loss on traffic traversing R3

Repeat the test from R4 using ICMP ping on the local 10.1.1 0/24 prefx, and fx any Layer 2 errors on the host or switch side of the subnet.

Tag the 10 1.1.0/24 prefix and deny the prefix from being redistributed into OSPF on R1.

Place an OSPF distribute-list outbound on R3 to block the 10.1.0/24 prefix from being advertised back to R3.

14. An engineer is configuring a network and needs packets to be forwarded to an interface for any destination address that is not in the routing table.

What should be configured to accomplish this task?

set ip next-hop

set ip default next-hop

set ip next-hop recursive

set ip next-hop verify-availability

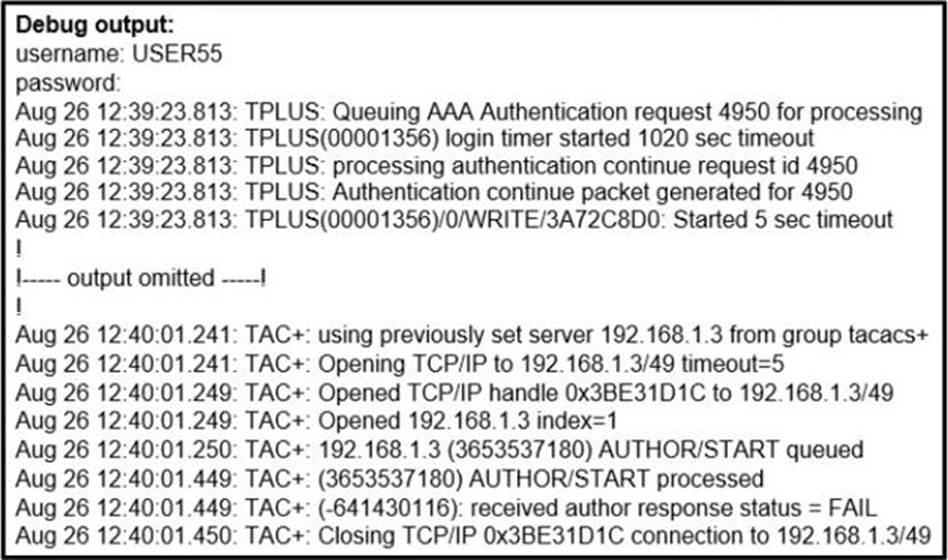

15. Refer to the exhibit.

A network administrator logs into the router using TACACS+ username and password credentials, but the administrator cannot run any privileged commands.

Which action resolves the issue?

Configure TACACS+ synchronization with the Active Directory admin group

Configure an authorized IP address for this user to access this router.

Configure full access for the username from TACACS+ server

Configure the username from a local database

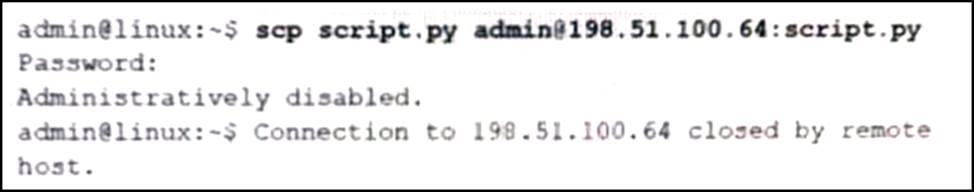

16. Refer to the exhibit.

A network administrator has developed a Python script on the local Linux machine and is trying to transfer it to the router. However, the transfer fails.

Which action resolves this issue?

The SSH access must be allowed on the VTY lines using the transport input ssh command

The SSH service must be enabled with the crypto key generate rsa command

The Python interpreter must first be enabled with the guestshell enable command

The SCP service must be enabled with the ip scp server enable command

17. Reter to the exhibit.

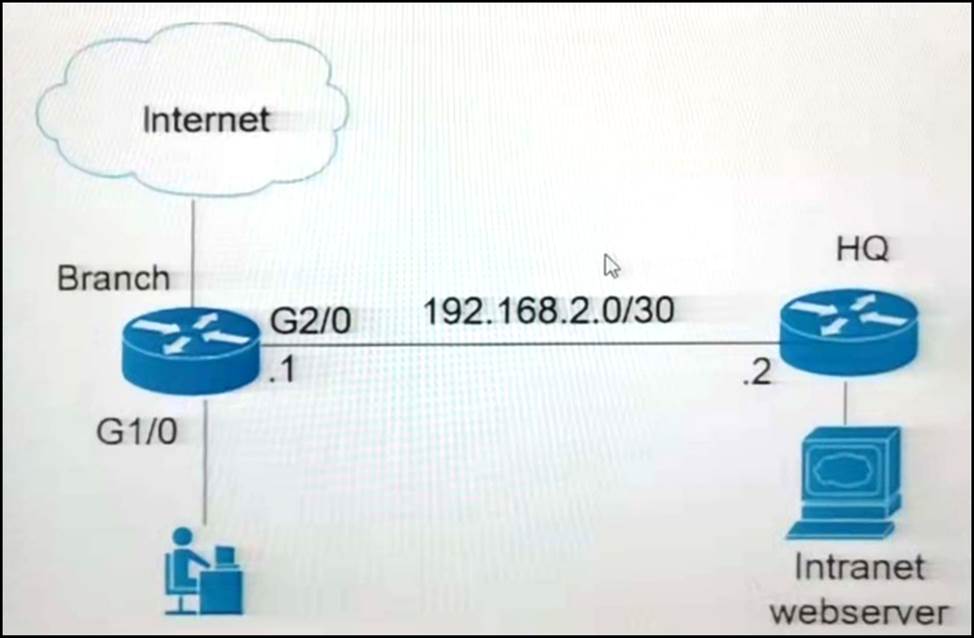

The branch router is configured with a default route toward the internet and has no routes configured for the HQ site that is connected through interface G2/0. The HQ router is fully configured and does not require changes.

Which configuration on the branch router makes the intranet website (TCP port 80) available to the branch office users?

access-list 100 permit tcp any host intranet-webserver-ip eq 80 ! route-map pbr permit 10 match ip address 100 set ip next-hop 192.168.2.2 ! interface G2/0 ip policy route-map pbr

access-list 101 permit tcp any any eq 80 access-list 102 permit tcp any host intranet-webserver-ip ! route-map pbr permit 10 match ip address 101 102 set ip next-hop 192.168.2.2 ! interface G1/0 ip policy route-map pbr

access-list 101 permit tcp any any eq 80 access-list 102 permit tcp any host intranet-webserver-ip ! route-map pbr permit 10 match ip address 101 set ip next-hop 192.168.2.2 route-map pbr permit 20 match ip address 102 set ip next-hop 192.168.2 2 ! interface G2/0 ip policy route-map pbr

acceslist 100 permit tcp host intranet-webserverip eq 80 any ! route-map pbr permit 10 match ip address 100 set ip next-hop 192.168 2.2 ! interface G1/0 ip policy route-map pbr

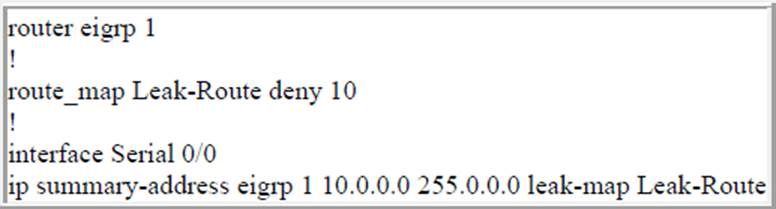

18. An engineer configured a leak-map command to summarize EIGRP routes and advertise specifically loopback 0 with an IP of 10.1.1.1 255.255.255.252 along with the summary route.

After finishing configuration, the customer complained not receiving summary route with specific loopback address.

Which two configurations will fix it? (Choose two)

Configure route-map Leak-Route permit 10 and match access-list 1

Configure access-list 1 permit 10.1.1.1 0.0.0.252

Configure access-list 1 and match under route-map Leak-Route

Configure route-map Leak-Route permit 20

Configure access-list 1 permit 10.1.1.0 0.0.0.3

19. Which protocol does MPLS use to support traffic engineering?

Resource Reservation Protocol

Label Distribution Protocol

Border Gateway Protocol

Tag Distribution Protocol

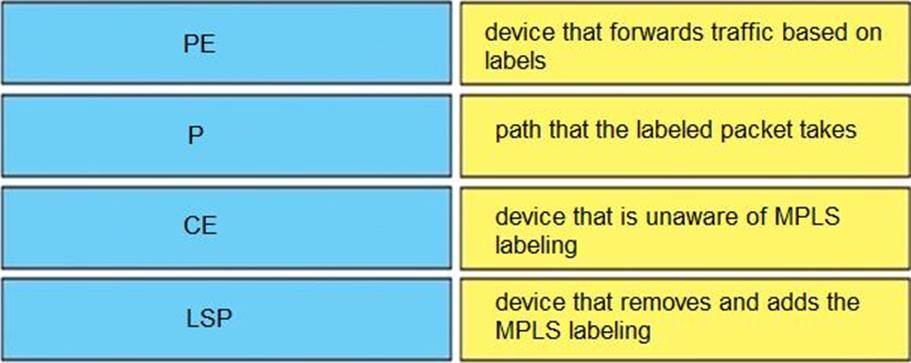

20. Drag and drop the MPLS terms from the left onto the correct definitions on the right.

Page 3 of 7

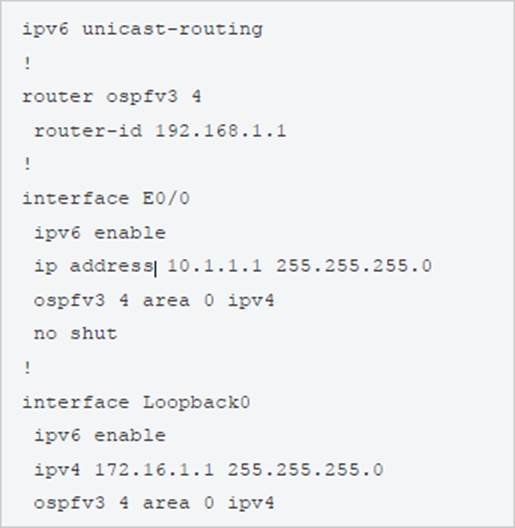

21. Refer to the exhibit.

The network administrator configured the branch router for IPv6 on the E 0/0 interface. The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up.

Which action fixes the problem on the branch router to bring the IPv6 neighbors up?

Disable OSPF for IPv4 using the no ospfv3 4 area 0 ipv4 command under the E 0/0 interface.

Enable the IPv4 address family under the router ospfv3 4 process by using the address-family ipv4 unicast command

Enable the IPv4 address family under the E 0/0 interface by using the address-family ipv4 unicast command.

Disable IPv6 on the E 0/0 interface using the no ipv6 enable command

22. Which two methods use IPsec to provide secure connectivity from the branch office to the headquarters office? (Choose two.)

DMVPN

MPLS VPN

Virtual Tunnel Interface (VTI)

SSL VPN

PPPoE

23. What are two characteristics of IPv6 Source Guard? (Choose two.)

requires that validate prefix be enabled

recovers missing binding table entries

requires the user to configure a static binding

used in service provider deployments to protect DDoS attacks

requires IPv6 snooping on Layer 2 access or trunk ports

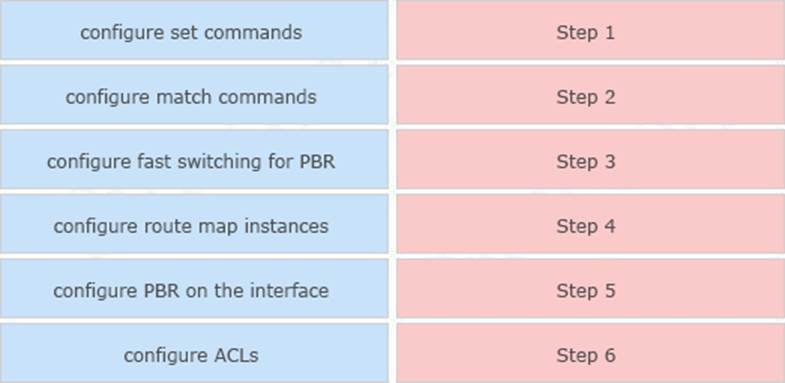

24. Drag and drop the actions from the left into the correct order on the right to configure a policy to avoid following packet forwarding based on the, normal routing path.

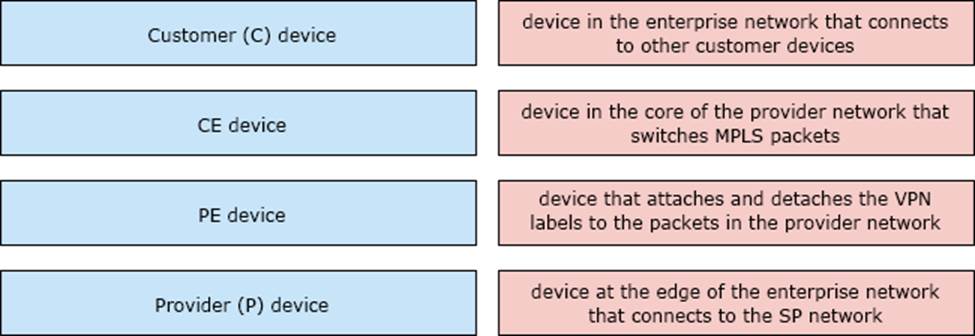

25. Drag and drop the MPLS VPN device types from the left onto the definitions on the right.

26. Refer to the exhibit.

The network administrator must mutually redistribute routes at the Chicago router to the LA and NewYork routers.

The configuration of the Chicago router is this:

After the configuration, the LA router receives all the NewYork routes, but NewYork router does not receive any LA routes.

Which set of configurations fixes the problem on the Chicago router?

router eigrp 100 redistribute ospf 1 metric 10 10 10 10 10

router eigrp 100 redistribute ospf 1 subnets

router ospf 1 redistribute eigrp 100 subnets

router ospf 1 redistribute eigrp 100 metric 20

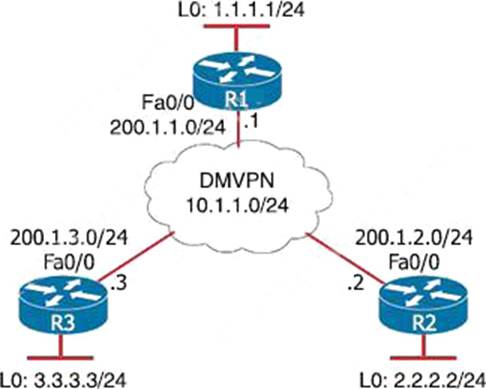

27. Refer to the exhibits.

When DMVPN is configured, which configuration allows spoke-to-spoke communication using loopback as tunnel source?

Configure crypto isakmp key cisco address 0.0.0.0 on the hub.

Configure crypto isakmp key Cisco address 200.1.0.0 255.255.0.0 on the hub.

Configure crypto isakmp key cisco address 200.1.0.0 255.255.0.0 on the spokes.

Configure crypto isakmp key cisco address 0.0.0.0 on the spokes

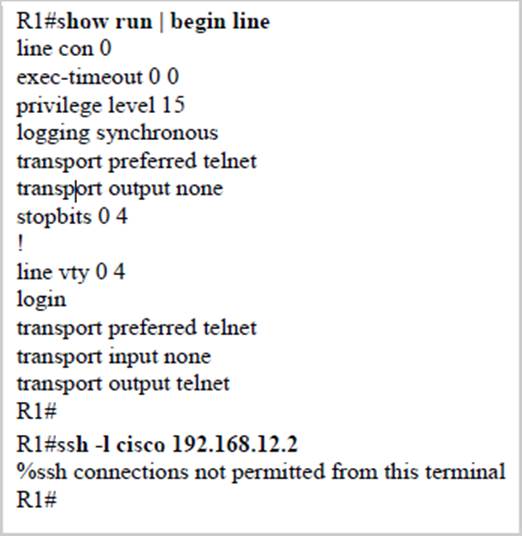

28. Refer to the exhibit.

An engineer receives this error message when trying to access another router m-band from the serial interface connected to the console of R1.

Which configuration is needed on R1 to resolve this issue?

Option A

R1(config)#line console 0

R1(config-line)#transport preferred ssh

Option B

R1(config)#line vty 0

R1(config-line)#transport output ssh

Option C

R1(config)#line vty 0

R1(config-line)#transport output ssh

R1(config-line)#transport preferred ssh

Option D

R1(config)#line console 0

R1(config-line)#transport output ssh

Option A

Option B

Option C

Option D

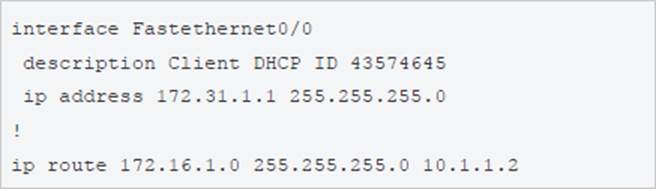

29. Refer to the exhibit.

The DHCP client is unable to receive an IP address from the DHCP server.

RouterB is configured as follows:

Which command is required on the fastethernet 0/0 interface of RouterB to resolve this issue?

RouterB(config-if)#ip helper-address 255.255.255.255

RouterB(config-if)#ip helper-address 172.31.1.1

RouterB(config-if)#ip helper-address 172.16.1.2

RouterB(config-if)#ip helper-address 172.16.1.1

30. Drag and drop the addresses from the left onto the correct IPv6 filter purposes on the right.

Page 4 of 7

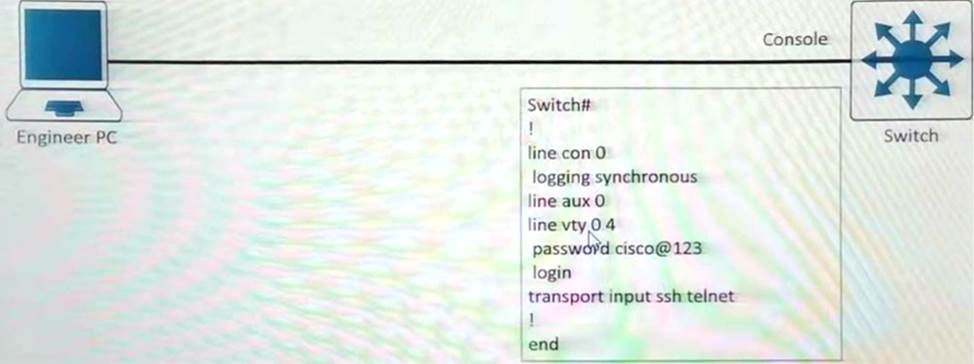

31. Refer to the exhibit

An engineer must block access to the console ports for all corporate remote Cisco devices based on the recent corporate security policy but the security team still can connect through the console port.

Which configuration on the console port resolves the issue?

transport input telnet

no exec

exec 0 0

32. Which protocol does VRF-Lite support?

S-IS

ODR

EIGRP

IGRP

33. Refer to the exhibit.

Routing protocols are mutually redistributed on R3 and R1. Users report intermittent connectivity to services hosted on the.10.1.1.0/24 prefix. Significant routing update changes are noticed on R3 when the show ip route profile command is run.

How must the services be stabilized?

The issue with using BGP must be resolved by using another protocol and redistributing it into EIGRP on R3.

The issue with using iBGP must be fixed by running eBGP between R3 and R4.

The routing loop must be foxed by reducing the admin distance of OSPF from 110 to 80 on R3

The routing loop must be fixed by reducing the admin distance of iBGP from 200 to 100 on R3

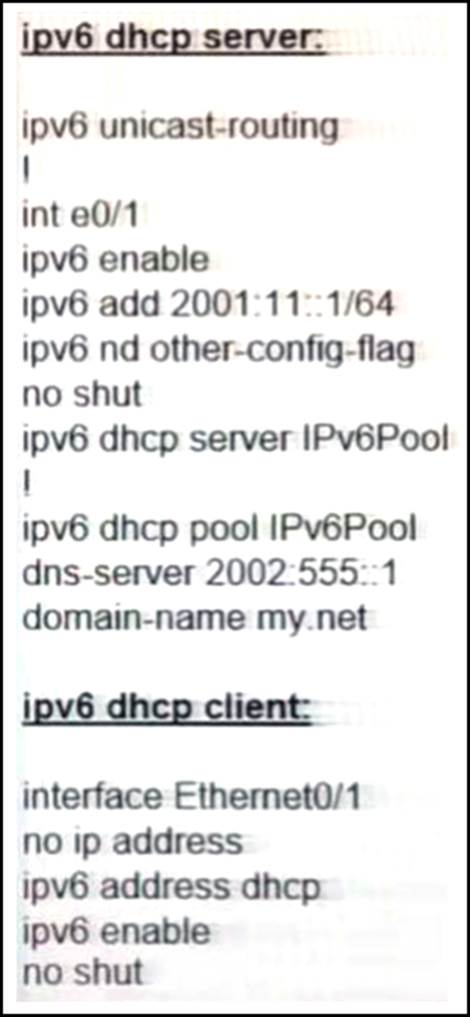

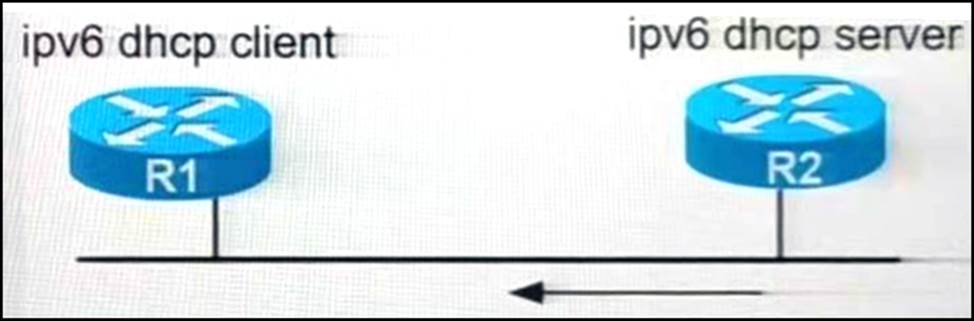

34. Refer to the exhibit.

A network administrator is troubleshooting IPv6 address assignment for a DHCP client that is not getting an IPv6 address from the server.

Which configuration retrieves the client lPv6 address from the DHCP server?

service dhcp command on DHCP server

ipv6 dhcp relay-agent command on the interface

ipv6 dhcp server automatic command on DHCP server

ipv6 address autoconfig command on the interface

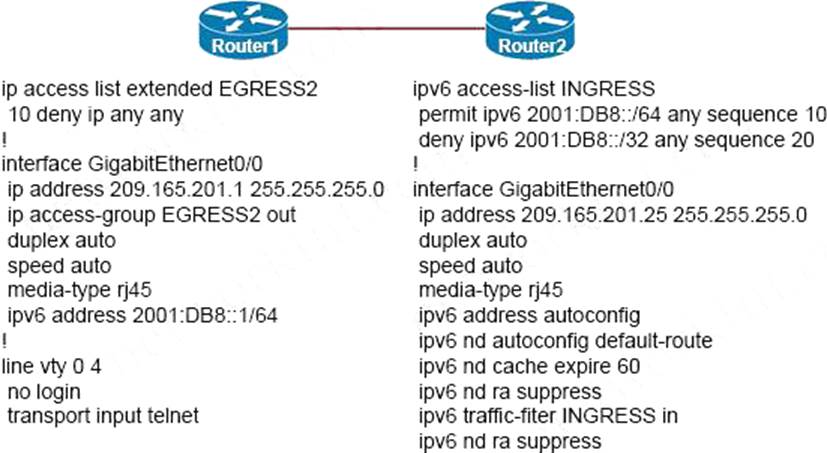

35. Refer to the exhibit.

The engineer configured and connected Router2 to Router 1. The link came up but could not establish a Telnet connection to Router1 IPv6 address of 2001:DB8::1.

Which configuration allows Router2 to establish a Telnet connection to Router1?

ipv6 unicast-routing

permit ICMPv6 on access list INGRESS for Router2 to obtain IPv6 address

permit ip any any on access list EGRESS2 on Router1

IPv6 address on GigabitEthernet0/0

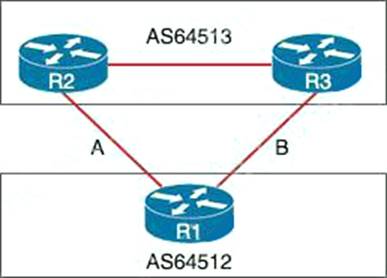

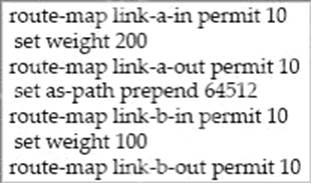

36. Refer to the exhibit.

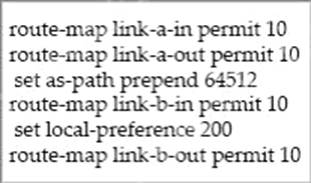

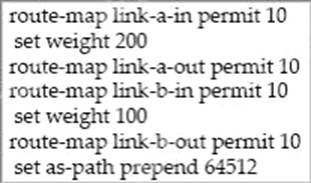

A network engineer for AS64512 must remove the inbound and outbound traffic from link A during maintenance without closing the BGP session so that there is still a backup link over link A toward the ASN.

Which BGP configuration. on R1 accomplishes this goal?

A)

Option A

Option B

Option C

Option D

37. Which SNMP verification command shows the encryption and authentication protocols that are used in SNMPV3?

show snmp group

show snmp user

show snmp

show snmp view

38. Refer to the exhibit.

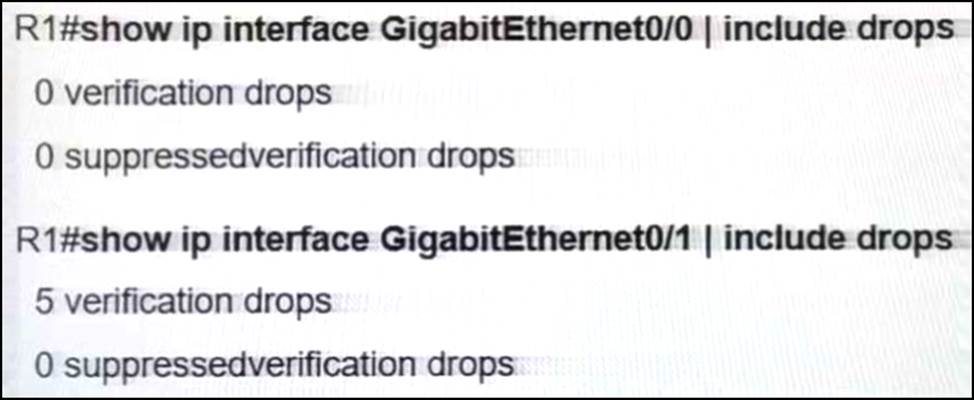

R1 is configured with uRPF, and ping to R1 is failing from a source present in the R1 routing table via the GigabitEthernet 0/0 interface.

Which action resolves the issue?

Remove the access list from the interface GigabitEthernet 0/0.

Modify the uRPF mode from strict to loose.

Enable Cisco Express Forwarding to ensure that uRPF is functioning correctly

Add a floating static route to the source on R1 to the GigabitEthernet 0/1 interface

39. Refer to the exhibit.

The Interment traffic should always prefer Site A ISP-1 if the link and BGP connection are up; otherwise, all Internet traffic should got ISP-2 Redistribution is configured between BGP and OSPF routing protocols, and it is not working as expected.

What action resolves the issue?

Set metric-type 2 at Site A RTR1 and set metric-type 1 at Site-B RTR2

Set OSPF Cost 100 at Site-A RTR1 and set OSPF Cost 200 at Site-B RTR2

Set OSPF Cost 200 at Site-A RTR1 and set OSPF Cost 100 at Site-B RTR2

Set metric-type 1 at Site A RTR1 and set metric-type 2 at Site-B RTR2

40. Refer to the exhibit.

An engineer configured IP SLA on R1 to avoid the ISP link flapping problem, but it is not working as designed. IP SLA should wait 30 seconds before switching traffic to a secondary connection and then revert to the primary link after waiting 20 seconds, when the primary link is available and stabilized.

Which configuration resolves the issue?

R1(config)#ip sla 700 R1(config-ip-sla)#delay down 30 up 20

R1(config)#ip sla 700 R1(config-ip-sla)#delay down 20 up 30

R1(config)#track 700 ip sla 700 R1(config-track)#delay down 30 up 20

R1(config)#track 700 ip sla 700 R1(config-track)#delay down 20 up 30

Page 5 of 7

41. Users were moved from the local DHCP server to the remote corporate DHCP server. After the move, none of the users were able to use the network.

Which two issues will prevent this setup from working properly? (Choose two)

Auto-QoS is blocking DHCP traffic.

The DHCP server IP address configuration is missing locally

802.1X is blocking DHCP traffic

The broadcast domain is too large for proper DHCP propagation

The route to the new DHCP server is missing

42. Refer to the exhibit.

An engineer configured BGP between routers R1 and R3. The BGP peers cannot establish neighbor adjacency to be able to exchange routes.

Which configuration resolves this issue?

R1 router bgp 6501 address-family ipv6 neighbor AB01:2011:7:100::3 activate

R1 router bgp 6501 neighbor AB01:2011:7:100::3 ebgp-multihop 255

R3 router bgp 6502 neighbor AB01:2011:7:100:1 ebgp-multihop 255

R3 router bgp 6502 address-family ipv6 neighbor AB01:2011:7:100::1 activate

43. Drag and drop the operations from the left onto the locations where the operations are performed on the right.

44. Refer to the exhibit.

R1 and R2 cannot establish an EIGRP adjacency.

Which action establishes EIGRP adjacency?

Remove the current autonomous system number on one of the routers and change to a different value

Add the no auto-summary command to the R2 configuration so that it matches the R1 configuration

Add the passive-interface command to the R1 configuration so that it matches the R2 configuration

Remove the passive-interface command from the R2 configuration so that it matches the R1 configuration

45. Refer to the exhibit.

An engineer configures DMVPN and receives the hub loacation prefix of 10.1.1.0/24 on R2 and R3. The R3 prefix of 10.1.3.0/24 is not received on R2, and the R2 prefix 10.1.2.0/24 is not received on R3.

Which action resolves the issue?

Split honzon prevents the routes from being advertised between spoke routers. It should be disabled with the command no ip split-horizon eigrp 10 on the tunnel interface of R1

There is no spoke-to-spoke connection DMVPN configuration should be modified to enable a tunnel connection between R2 and R3 and neighbor relationship confirmed by use of the show ip eigrp neighbor command

Split horizon prevents the routes from being advertised between spoke routers It should be disabled with the no ip split-horizon eigrp 10 command on the Gi0/0 interface of R1

There is no spoke-to-spoke connection DMVPN configuration should be modified with a manual neighbor relationship configured between R2 and R3 and confirmed by use of the show ip eigrp neighbor command

46. What are two purposes of using IPv4 and VPNv4 address-family configurations in a Layer 3 MPLS VPN? (Choose two)

RD is prepended to the IPv4 route to make it unique.

The VPNv4 address consists of a 64_bit route distinguisher that is prepended to the IPv4 prefix.

MP-BGP is used to allow overlapping IPv4 addresses between customers to advertise through the network.

The IPv4 address is needed to tag the MPLS label.

The VPNv4 address is used to advertise the MPLS VPN label.

47. Refer to the exhibit.

AS 111 wanted to use AS 200 as the preferred path for 172.20.5.0/24 and AS 100 as the backup. After the configuration, AS 100 is not used for any other routes.

Which configuration resolves the issue?

route-map SETLP permit 10 match ip address prefix-list PLIST1 set local-preference 99

route-map SETLP permit 10 route-map SETLP permit 20 match ip address prefix-list PLIST1 set local-preference 110 route-map SETLP permit 20

router bgp 111 no neighbor 192.168.10.1 route-map SETLP in neighbor 192.168.10.1 route-map SETLP out

router bap 111 no neighbor 192.168.10.1 route-map SETLP in neighbor 192.168.20.2 route-map SE TLP in

48. 1.1.2/8 via 10.2.1.2, Tunnel1 created 00:00:12, expire 01:59:47

Type. dynamic, Flags: authoritative unique nat registered used

NBMA address: 10.12.1.2

What does the authoritative flag mean in regards to the NHRP information?

It was obtained directly from the next-hop server.

Data packets are process switches for this mapping entry.

NHRP mapping is for networks that are local to this router.

The mapping entry was created in response to an NHRP registration request.

The NHRP mapping entry cannot be overwritten

49. Refer to the exhibit.

A network administrator added one router in the Cisco DNA Center and checked its discovery and health from the Network Health Dashboard. The network administrator observed that the router is still showing up as unmonitored.

What must be configured on the router to mount it in the Cisco DNA Center?

Configure router with routing to reach Cisco DNA Center.

Configure router with NetFlow data.

Configure router with the telemetry data.

Configure router with SNMPv2c or SNMPv3 traps.

50. Refer to the exhibit.

An engineer is trying to redistribute OSPF to BGP, but not all of the routes are redistributed.

What is the reason for this issue?

By default, only internal routes and external type 1 routes are redistributed into BGP

Only classful networks are redistributed from OSPF to BGP

BGP convergence is slow, so the route will eventually be present in the BGP table

By default, only internal OSPF routes are redistributed into BGP

Page 6 of 7

51. Refer to the exhibit.

Which two sets of configurations bring the neighbors up? (Choose two.)

R2 ip route 10.1.1.1 255.255.255.255 192.168.1.1 ! router bgp 200 neighbor 10.1.1.1 tti-security hops 1 neighbor 10.1.1.1 update-source loopback 0

R2 ip route 10.1.1.1 255.255.255.255 192.168.1.1 ! router bgp 200 neighbor 10.1.1.1 disable-connected-check neighbor 10.1.1.1 update-source loopback 0

R2 ip route 10.1.1.2 255.255.255.255 192.168.1.2 ! router bgp 100 neighbor 10.1.1.2 ttl-security hops 1 neighbor 10.1.1.2 update-source loopback 0

R1 ip route 10.1.1.2 255.255.255.255 192.168.1.2 ! router bgp 100 neighbor 10.1.1.1 ttl-security hops 1 neighbor 10.1.1.2 update-source loopback 0

R1 ip route 10.1.1.2 255.255.255.255 192.168.1.2 ! router bgp 100 neighbor 10.1.1.2 disable-connected-check neighbor 10.1.1.2 update-source Loopback0

52. Drag and drop the MPLS VPN concepts from the left onto the correct descriptions on the right.

53. Which command is used to check IP SLA when an interface is suspected to receive lots of traffic with options?

show track

show threshold

show timer

show delay

54. Refer to the exhibit.

Which statement about R1 is true?

OSPF redistributes RIP routes only if they have a tag of one.

RIP learned routes are distributed to OSPF with a tag value of one.

R1 adds one to the metric for RIP learned routes before redistributing to OSP

RIP routes are redistributed to OSPF without any changes.

55. Which function does LDP provide in an MPLS topology?

It enables a MPLS topology to connect multiple VPNs to P routers.

It provides hop-by-hop forwarding in an MPLS topology for LSRs

It exchanges routes for MPLS VPNS across different VRF

It provides a means for LSRs to exchange IP routes.

56. Refer to the exhibit.

access-list 1 permit 1.1.1.0 0.0.0.255

!

route-map FILTER1 deny 10

match ip address 1

!

router eigrp 1

distribute-list route-map FILTER1 in

Which action restores the routes from neighbors while still filtering 1 1 1 0/24?

Add a second line in the access list to permit any

Modify the route map to permit the access list instead of deny it

Modify the access list to deny instead of permit it

Add a second sequence in the route map permit 20

57. Refer to the exhibit.

AAA server 10.1.1.1 is configured with the default authentication and accounting settings, but the switch cannot communicate with the server.

Which action resolves this issue?

Correct the timeout value

Match the authentication port

Correct the shared secret

Match the accounting port

58. Refer to the exhibit.

An engineer is monitoring reachability of the configured default routes to ISP1 and ISP2. The default route from ISP1 is preferred if available.

How is this issue resolved?

Use the icmp-echo command to track both default routes

Start IP SLA by matching numbers for track and ip sla commands

Start IP SLA by defining frequency and scheduling it

Use the same AD for both default routes

59. Refer to the exhibit.

An engineer has successfully set up a floating static route from the BRANCH router to the HQ network using HQ_R1 as the primary default gateway. When the g0/0 goes down on HQ_R1, the branch network cannot reach the HQ network 192.168.20.0/24.

Which set of configurations resolves the issues?

HQ_R3(config)# ip sla responder HQ_R3(config)# ip sla responder icmp-echo 172.16.35.1

BRANCH(config)# ip sla 1 BRANCH(config-ip-sla)# icmp-echo 192.168.100.2

HQ_R3(config)# ip sla responder HQ_R3(config)# ip sla responder icmp-echo 172.16.35.5

BRANCH(config)# ip sla 1 BRANCH(config-ip-sla)# icmp-echo 192.168.100.1

60. What is the output of the following command:

show ip vrf

Show's default RD values

Displays IP routing table information associated with a VRF

Show's routing protocol information associated with a VR

Displays the ARP table (static and dynamic entries) in the specified VRF

Page 7 of 7

61. Refer to the exhibit.

Which action resolves the adjacency issue?

Match the hello interval timers

Match the authentication keys.

Configure the same autonomous system numbers.

Configure the sarme EIGRP process IDs.

62. An engineer configured access list NON-CISCO in a policy to influence routes.

What are the two effects of this route map configuration? (Choose two.)

Packets are forwarded to the default gateway.

Packets are dropped by the access list.

Packets are not evaluated by sequence 10

Packets are evaluated by sequence 10

Packets are forwarded using normal route lookup.

63. Refer to the exhibit.

An engineer is trying to generate a summary route in OSPF for network 10.0.0.0/8, but the summary route does not show up in the routing table.

Why is the summary route missing?

The summary-address command is used only for summarizing prefixes between areas.

The summary route is visible only in the OSPF database, not in the routing table.

There is no route for a subnet inside 10.0.0.0/8, so the summary route is not generated.

The summary route is not visible on this router, but it is visible on other OSPF routers in the same area.

64. How does an MPLS Laver 3 VPN function?

set of sites interconnect privately over the Intemet for security

multiple customer sites interconnect through a service provider network using customer edge to provider edge connectivity

set of sites use multiprotocol BGP at the customer site for aggregation

multiple customer sites interconnect through service provider network to create secure tunnels between customer edge devices

65. Drag and drop the IPv6 First-Hop Security features from the left onto the definitions on the right.

66. A network engineer needs to verify IP SLA operations on an interface that shows on indication of excessive traffic.

Which command should the engineer use to complete this action?

show frequency

show track

show reachability

show threshold

67. Refer to the exhibit.

A network administrator is using the DNA Assurance Dashboard panel to troubleshoot an OSPF adjacency that failed between Edge NYC Interface GiqabitEthernet1/3 with Neighbor Edge SNJ. The administrator observes that the neighborship is stuck in exstart state.

How does the administrator fix this issue?

Configure to match the OSPF interface unique IP address and subnet mask on both routers.

Configure to match the OSPF interface network types on both routers.

Configure to match the OSPF interface speed and duplex settings on both routers

Configure to match the OSPF interface MTU settings on both routers

68. What are two MPLS label characteristics? (Choose two.)

The label edge router swaps labels on the received packets.

Labels are imposed in packets after the Layer 3 header.

LDP uses TCP for reliable delivery of information.

An MPLS label is a short identifier that identifies a forwarding equivalence class.

A maximum of two labels can be imposed on an MPLS packet.
