The 300-620 DCACI Dumps have been updated with real exam questions and answers to help you prepare well for the Cisco CCNP Data Center 300-620 exam. FreeTestShare experts spent a lot of time and energy researching Cisco 300-620 exam objectives to collect the most recent 300-620 DCACI Dumps. We guarantee that you will have a better understanding of the Implementing Cisco Application Centric Infrastructure 300-620 exam topics and patterns. The entire 300-620 DCACI Dumps contains actual test questions and answers that will help you pass the 300-620 exam in the first attempt.

Test yourself with these 300-620 practice exam questions now!

Page 1 of 4

1. An engineer must deploy Cisco ACI across 10 geographically separated data centers .

Which ACI site deployment feature enables the engineer to control which bridge domains contain Layer 2 flooding?

GOLF

Multi-Site

Multi-Pod

Stretched Fabric

2. What represents the unique identifier of an ACI object?

universal resource identifier (URI)

application programming interface

management information tree

distinguished name

3. Which feature dynamically assigns or modifies the EPG association of virtual machines based on their attributes?

vzAny contracts

standard contracts

application EPGs

uSeg EPGs

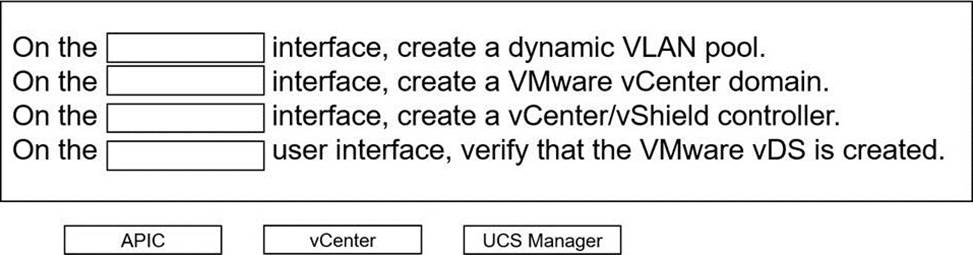

4. DRAG DROP

An engineer must configure VMM domain integration on a Cisco UCS B-Series server that is connected to a Cisco ACI fabric.

Drag and drop the products used to create VMM domain from the bottom into the sequence in which they should be implemented at the top. Products are used more than once.

5. What are two requirements for the IPN network when implementing a Multi-Pod ACI fabric? (Choose two.)

EIGRP routing

PIM ASM multicast routing

BGP routing

VLAN ID 4

OSPF routing

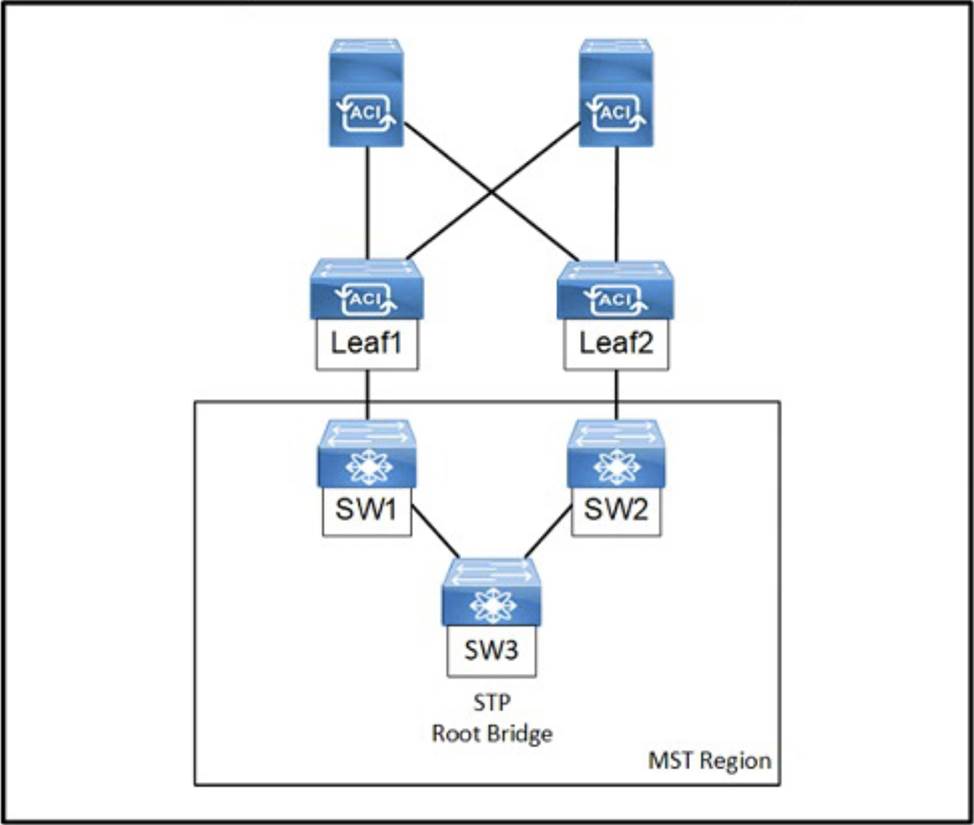

6. Refer to the exhibit, An engineer is deploying a Cisco ACI environment but experiences a STP loop between switch1 and switch2 .

Which configuration step is needed to break the STP loop?

Configure the STP instance to VLAN mapping under the switch STP policy.

Configure a Layer 2 external bridged network on the interfaces facing the MST switches.

Enable the native VLAN on the interfaces facing the MST switches using static pons in a dedicated EP

Enable BPDU filter under the STP interface policy on the Interfaces lacing the MST switches.

7. A RADIUS user resolves its role via the Cisco AV Pair .

What object does the Cisco AV Pair resolve to?

tenant

security domain

primary Cisco APIC

managed object class

8. Which two types of interfaces are supported on border leaf switches to connect to an external router? (Choose two.)

subinterface with VXLAN tagging

subinterface with 802.1Q tagging

FEX host interface

out of band interface

Switch Virtual Interface

9. An engineer is implementing Cisco ACI at a large platform-as-a-service provider using APIC controllers, 9396PX leaf switches, and 9336PQ spine switches. The leaf switch ports are configured as IEEE 802.1p ports. Where does the traffic exit from the EPG in IEEE 802.1p mode in this configuration?

from leaf ports tagged as VLAN 0

from leaf ports untagged

from leaf ports tagged as VLAN 4094

from leaf ports tagged as VLAN 1

10. A Cisco ACI is integrated with a VMware vSphere environment. The port groups must be created automatically in vSphere and propagated to hypervisors when created in the ACI environment .

Which action accomplishes this goal?

Associate the VMM domain with the EPGs that must be available in vCenter.

Assign the uplinks of the ESXi hosts to the vDS that the APIC created.

Configure contracts for the EPGs that are required on the ESXi hosts.

Create the port groups on the vCenter that reflect the EPG names in the API

Page 2 of 4

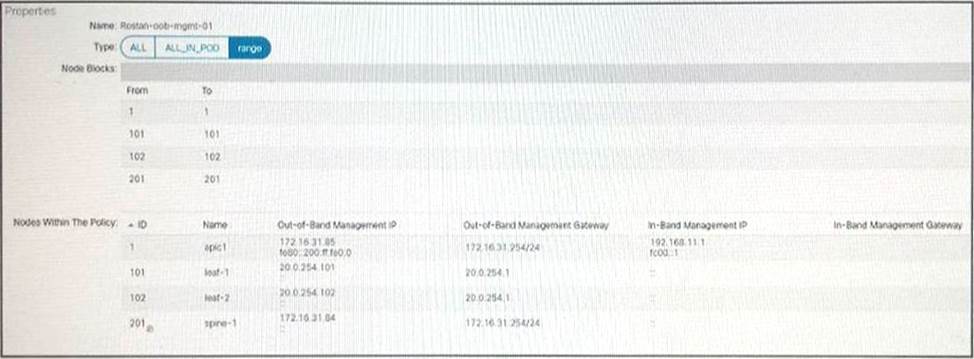

11. Refer to the exhibit.

A Cisco ACI fabric is using out-of-band management connectivity The APIC must access a routable host with an IP address of 192 168 11 2.

Which action accomplishes this goal?

Change the switch APIC Connectivity Preference to in-band management

Remove the in-band management address from the API

Add a Fabric Access Policy to allow management connections.

Modify the Pod Profile to use the default Management Access Policy

12. An engineer must implement management policy and data plane separation in the Cisco ACI fabric .

Which ACI object must be created in Cisco APIC to accomplish this goal?

Application profile

Tenant

Contract

Bridge domain

13. Which type of port is used for in-band management within ACI fabric?

spine switch port

APIC console port

leaf access port

management port

14. The company’s Cisco ACI fabric hosts multiple customer tenants. To meet a service level agreement, the company is constantly monitoring the Cisco ACI environment. Syslog is one of the methods used for monitoring. Only events related to leaf and spine environmental information without specific customer data should be logged.

To which ACI object must the configuration be applied to meet these requirements?

access policy

infra tenant

switch profile

fabric policy

15. Which method does the Cisco ACI fabric use to load-balance multidestination traffic?

PIM routing

spanning trees

shortest-path trees

forwarding tag trees

16. An engineer must set up a Cisco ACI fabric to send Syslog messages related to hardware events, such as chassis line card failures. The messages should be sent to a dedicated Syslog server. Where in the Cisco APIC should the policy be configured to meet this requirement?

uni/tn-common/monepg-default

uni/infra/monifra-default

uni/fabric/monfab-default

uni/fabric/moncommon

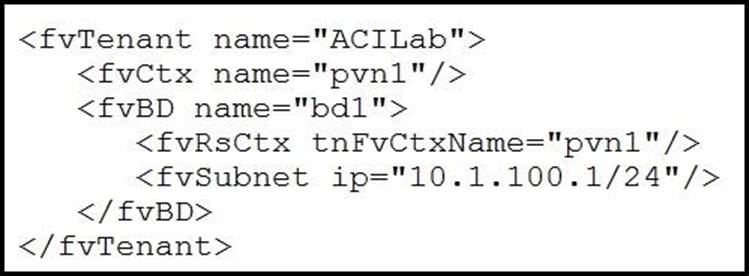

17. Refer to the exhibit.

Which two objects are created as a result of the configuration? (Choose two.)

application profile

attachable AEP

bridge domain

endpoint group

VRF

18. Which statement regarding ACI Multi-Pod and TEP pool is true?

The IP addresses used in the IPN network can overlap TEP pool of the API

A different TEP pool must be assigned to each Pod.

The Pod1 TEP pool must be split and a portion of the TEP pool allocated to each Pod.

The same TEP pool is used in all Pods.

19. An engineer must securely export Cisco APIC configuration snapshots to a secure, offsite location The exported configuration must be transferred using an encrypted tunnel and encoded with a platform-agnostic data format that provides namespace support Which configuration set must be used?

Option A

Option B

Option C

Option D

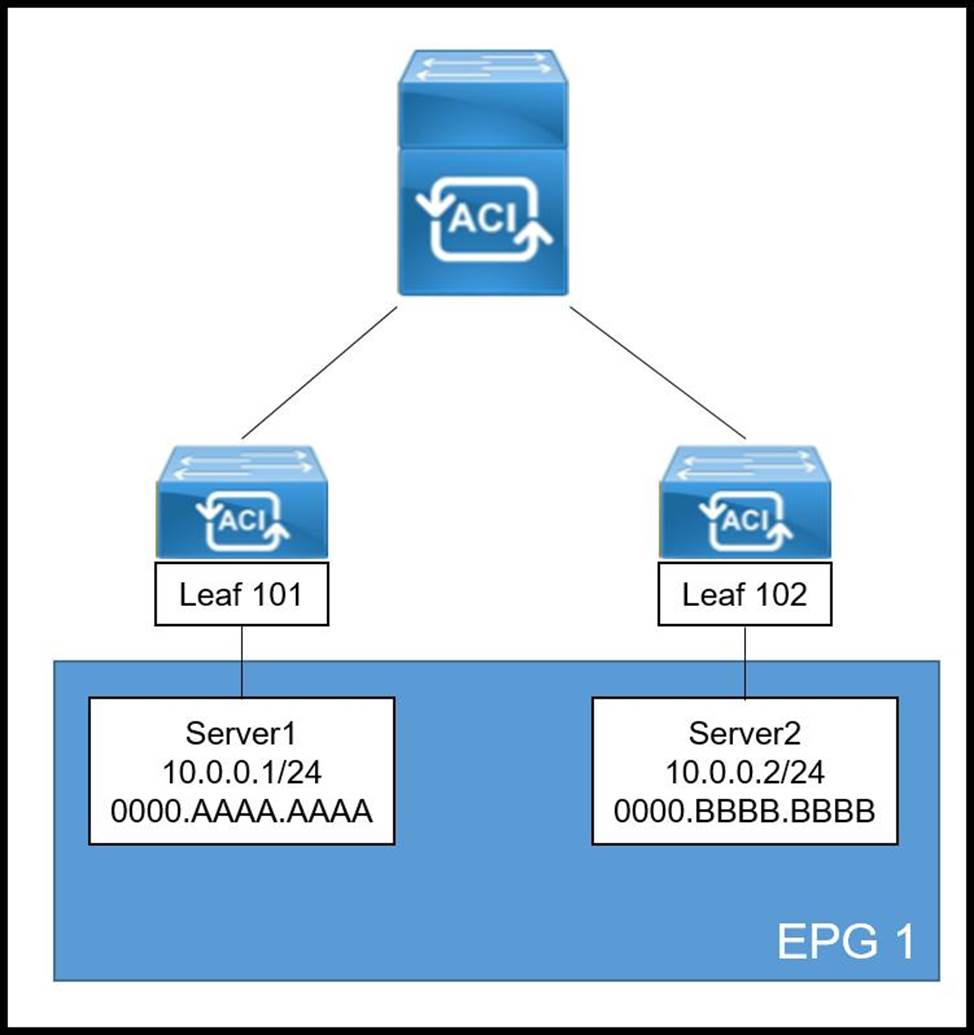

20. Refer to the exhibit.

A systems engineer is implementing the Cisco ACI fabric. However, the Server2 information is missing from the Leaf 101 endpoint table and the COOP database of the spine. The requirement is for the bridge domain configuration to enforce the ACI fabric to forward the unicast packets generated by Server1 destined to Server2 .

Which action must be taken to meet these requirements?

Enable ARP Flooding

Set L2 Unknown Unicast to Flood

Set IP Data-Plane Learning to No

Enable Unicast Routing

Page 3 of 4

21. A customer migrates a legacy environment to Cisco ACI. A Layer 2 trunk is configured to interconnect the two environments. The customer also builds ACI fabric in an application-centric mode .

Which feature should be enabled in the bridge domain to reduce instability during the migration?

Set Multi-Destination Flooding to Flood in B

Enable Flood in Encapsulation.

Set Multi-Destination Flooding to Flood in Encapsulation.

Disable Endpoint Dataplane Learning

22. Which Cisco APIC configuration prevents a remote network that is not configured on the bridge domain from

being learned by the fabric?

enable Limit IP Learning to Subnet

enable Unicast Routing

enable IP Data-plane Learning

enable ARP Flooding to BD

23. An engineer is in the process of discovering a new Cisco ACI fabric consisting of two spines and four leaf switches. The discovery of leaf 1 has just been completed .

Which two nodes are expected to be discovered next? (Choose two.)

spine 1

leaf 4

spine 2

leaf 3

leaf 2

24. Which table holds IP address, MAC address and VXLAN/VLAN information on a Cisco ACI leaf?

endpoint

adjacency

RIB

ARP

25. An ACI engineer is implementing a Layer 3 out inside the Cisco ACI fabric that must meet these requirements:

✑ The data center core switch must be connected to one of the leaf switches with a single 1G link.

✑ The routes must be exchanged using a link-state routing protocol that supports hierarchical network design.

✑ The data center core switch interface must be using 802.1Q tagging, and each vlan will be configured with a dedicated IP address.

Which set of steps accomplishes these goals?

Set up the ElGRP Protocol policy with the selected Autonomous System number. Set up the Routed External Network object ana Node Profile, selecting ElGRP Create the Switch profile, selecting Port-channel and the appropriate interfaces Create the default network and associate it with the Routed Outside object.

Set up the BGP Protocol policy with the Autonomous System number of 0. Configure an interface policy and an External Bridged Domain. Create an External Bridged Network using the configured VLAN pool. Build the Leaf profile, selecting Routed sub-interface and the appropriate VLA

Configure the OSPF Protocol policy with an area of 0. Create Routed Outside object and Node Profile, selecting OSPF as the routing protocol. Build the Interface profile, selecting Routed Sub-interface and the appropriate VLA

Configure the External Network object with a network of 0.0.0.0/0.

Set up the ElGRP Protocol policy with the selected Autonomous System number. Create the Routed Outside object and Node Profile selecting ElGRP Configure the Interface profile selecting Routed Interface and the appropriate interfaces. Create the External Network object with a network of 0.0.0.0/0.

26. An engineer must connect Cisco ACI fabric using Layer 2 with external third-party switches.

The third-party switches are configured using 802.1s protocol .

Which two constructs are required to complete the task? (Choose two.)

spanning tree policy for mapping MST Instances to VLANs

MCP policy with PDU per VLAN enabled

MCP instance policy with administrative slate disabled

dedicated EPG for native VLAN

static binding of native VLAN in all existing EPGs

27. A Cisco ACI bridge domain and VRF are configured with a default data-plane learning configuration .

Which two endpoint attributes are programmed in the leaf switch when receiving traffic? (Choose two.)

Remote MA

Remote Subnet

Local IP, not MAC

Local MAC, IP

Local Subnet

Remote IP

28. An engineer must allow multiple external networks to communicate with internal ACI subnets .

Which action should the engineer take to assign the prefix to the class ID of the external Endpoint Group?

Enable the Export Route Control Subnet for the External Endpoint Group flag.

Enable an L30ut with Shared Route Control Subnet.

Configure subnets with the External Subnets for External EPG flag enabled.

Configure subnets with the Import Route Control Subnet flag enabled.

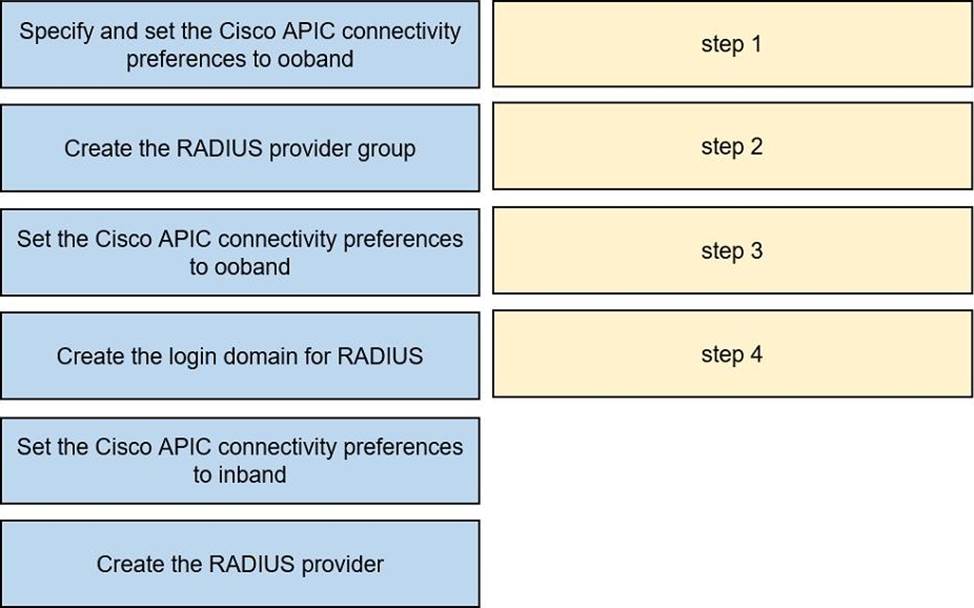

29. DRAG DROP

An engineer must configure RADIUS authentication with Cisco ACI for remote authentication with out-of-band management access.

Drag and drop the RADIUS configuration steps from the left into the required implementation order on the right. Not all steps are used.

30. Which attribute should be configured for each user to enable RADIUS for external authentication in Cisco ACI?

cisco-security domain

cisco-auth-features

cisco-aci-role

cisco-av-pair

Page 4 of 4

31. An application team tells the Cisco ACI network administrator that it wants to monitor the statistics of the unicast and BUM traffic that are seen in a certain EPG .

Which statement describes the collection statistics?

All EPGs in the Cisco ACI tenant object must be enabled for statistics to be collected.

Cisco ACI does not capture statistics at the EPG level. Only statistics that pass through ACI contracts can be monitored.

EPG statistics can be collected only for VMM domains. If a physical domain exists, statistics are not collected.

The collection of statistics is enabled on the EPG level by enabling the statistics for unicast and BUM traffic.

32. What must be configured to redistribute externally learned OSPF routes within the ACI fabric?

Route Control Profile

BGP Route Reflector

BGP Inter-leak Route Map

PIM Sparse Mode

33. Which setting prevents the learning of Endpoint IP addresses whose subnet does not match the bridge domain subnet?

“Limit IP learning to network” setting within the bridge domain.

“Limit IP learning to subnet” setting within the EP

“Limit IP learning to network” setting within the EP

“Limit IP learning to subnet” setting within the bridge domain.

34. How is an EPG extended outside of the ACI fabric?

Create an external bridged network that is assigned to a leaf port.

Create an external routed network that is assigned to an EP

Enable unicast routing within an EP

Statically assign a VLAN ID to a leaf port in an EP
